ADP7182ACPZ-R7

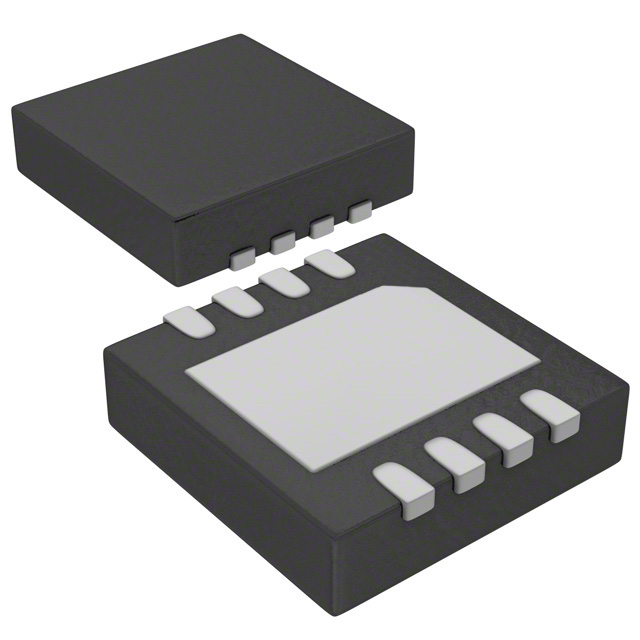

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADP7182ACPZ-R7 with confidence from Components-World.HK, 1 Year Warranty
Dowload ADP7182ACPZ-R7 Details in PDFSee Product Specifications for product details.
Buy ADP7182ACPZ-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADP7182ACPZ-R7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG LIN NEG ADJ 200MA 8LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.449 | $1.301 | $1.065 | $0.907 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADP7182ACPZ-R7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG LIN NEG ADJ 200MA 8LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33398 pcs | Data sheet | ADP7182 |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.36V @ 200mA |
| Voltage - Output (Min/Fixed) | -1.22V | Voltage - Output (Max) | -27.64V |
| Voltage - Input (Max) | -28V | Supplier Device Package | 8-LFCSP-WD (3x3) |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Original-Reel® | Package / Case | 8-WFDFN Exposed Pad, CSP |
| PSRR | 66dB ~ 45dB (10kHz ~ 1MHz) | Output Type | Adjustable |
| Output Configuration | Negative | Other Names | ADP7182ACPZ-R7DKR |
| Operating Temperature | -40°C ~ 125°C | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Negative Adjustable 1 Output -1.22 V ~ 27.8 V 200mA 8-LFCSP-WD (3x3) | Current - Supply (Max) | 850µA |
| Current - Quiescent (Iq) | 53µA | Current - Output | 200mA |
| Control Features | Enable | Base Part Number | ADP7182 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
