ADL5205ACPZ-R7

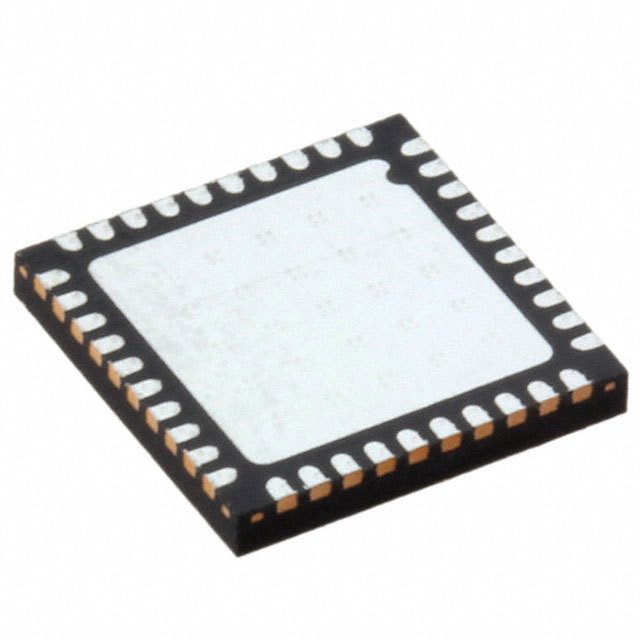

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADL5205ACPZ-R7 with confidence from Components-World.HK, 1 Year Warranty
Dowload ADL5205ACPZ-R7 Details in PDFSee Product Specifications for product details.
Buy ADL5205ACPZ-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADL5205ACPZ-R7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC AMP VGA DUAL LN 40LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | ||||
|---|---|---|---|---|---|
| $5.047 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADL5205ACPZ-R7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC AMP VGA DUAL LN 40LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7577 pcs | Data sheet | ADL5205 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single/Dual (±) | 3.15 V ~ 5.25 V |
| Supplier Device Package | 40-LFCSP-WQ (6x6) | Slew Rate | 5000 V/µs |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 40-WFQFN Exposed Pad, CSP | Output Type | - |
| Other Names | ADL5205ACPZ-R7TR | Operating Temperature | -40°C ~ 85°C |
| Number of Circuits | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Variable Gain Amplifier 2 Circuit 40-LFCSP-WQ (6x6) |
| Current - Supply | 175mA | Current - Output / Channel | 22mA |
| Base Part Number | ADL5205 | Amplifier Type | Variable Gain |
| -3db Bandwidth | 1.7GHz |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
