Home > Products > Cable Assemblies > Rectangular Cable Assemblies > D89120-0031HK-3365/20-S-6

D89120-0031HK-3365/20-S-6

D89120-0031HK-3365/20-S-6

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D89120-0031HK-3365/20-S-6 with confidence from Components-World.HK, 1 Year Warranty

Dowload D89120-0031HK-3365/20-S-6 Details in PDF

Request a Quote

Part Number	D89120-0031HK-3365/20-S-6
Manufacturer	3M
Description	SINGLE ENDED CABLE ASSEMBLY 20 P
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	500 pcs	1000 pcs	2500 pcs	5000 pcs
~~In Stock~~ 81284 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	250 pcs
	$0.554	$0.487	$0.439	$0.42	$0.382
	$0.344	$0.305	$0.277	$0.267

Product parameter
Data sheet

Product parameter

Part Number	D89120-0031HK-3365/20-S-6	Manufacturer	3M
Description	SINGLE ENDED CABLE ASSEMBLY 20 P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81284 pcs	Data sheet	3365 Series Datasheet Custom Cable Part Number Breakdown Ribbon Cable Assembly Length Guide D89 Series Datasheet
Category	Cable Assemblies	Usage	-
Shielding	Unshielded	Series	D89
Pitch - Connector	0.100" (2.54mm)	Pitch - Cable	0.050" (1.27mm)
Other Names	3M156037-MC20G-X-6	Number of Rows	2
Number of Positions	20	Length	0.500' (152.40mm, 6.00")
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	20 Position Cable Assembly Rectangular Socket to Cable 0.500' (152.40mm, 6.00")	Contact Finish Thickness	15.0µin (0.38µm)
Contact Finish	Gold	Connector Type	Socket to Cable
Color	Gray, Ribbon	Cable Termination	IDC

Related products
Related news

Related products

D89116-0131HK-3365/16-D-3 Image

Part#:~~D89116-0131HK-3365/16-D-3~~
Manufacturers:3M
Description:~~CABLE 16POS SOCKET TO SOCKET 3"~~
In Stock:~~89449~~

~~$0.378/pcs~~RFQ

D89116-0131HK-3365/16-S-6 Image

Part#:~~D89116-0131HK-3365/16-S-6~~
Manufacturers:3M
Description:~~SINGLE ENDED CABLE ASSEMBLY 16 P~~
In Stock:~~84274~~

~~$0.232/pcs~~RFQ

D89120-0131HK-3365/20-D-3 Image

Part#:~~D89120-0131HK-3365/20-D-3~~
Manufacturers:3M
Description:~~CABLE 20POS SOCKET TO SOCKET 3"~~
In Stock:~~78752~~

~~$0.418/pcs~~RFQ

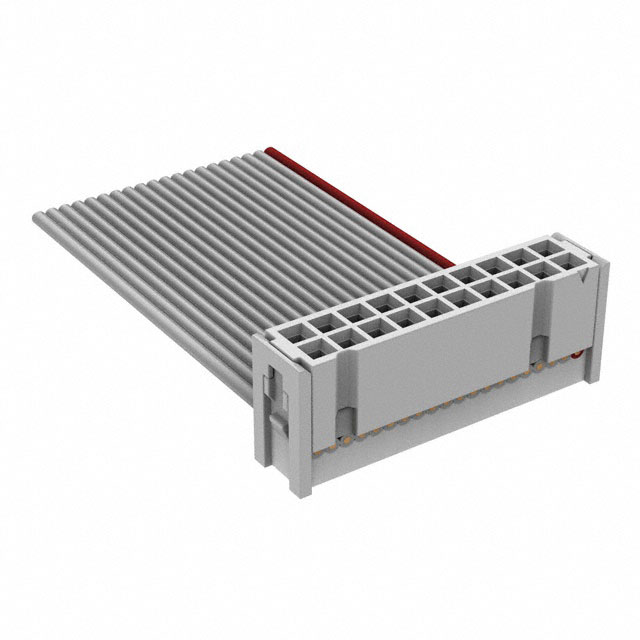

D89120-0031HK-3365/20-S-3 Image
