D2526-6002-AR

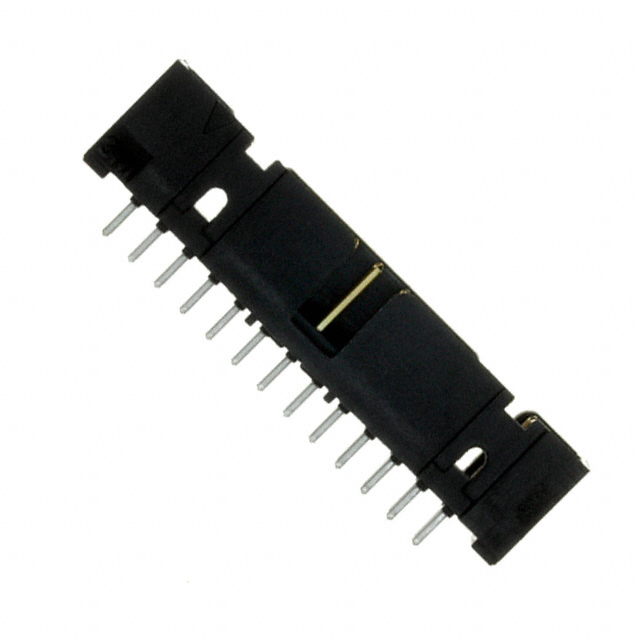

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2526-6002-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D2526-6002-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D2526-6002-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 26POS VERT 10GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 392 pcs | ||
|---|---|---|---|---|---|
| $0.737 | $0.67 | $0.519 | |||
| 784 pcs | 1176 pcs | 5096 pcs | |||
| $0.465 | $0.41 | $0.364 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | D2526-6002-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 26POS VERT 10GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99308 pcs | Data sheet | Interconnect CatalogD2500 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | D2500 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.492" (12.50mm) |
| Other Names | 00051119907179 05111990717 5111990717 51119907179 7100050423 80001204447 D25266002AR MHC26E |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.253" (6.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.243" (6.17mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
