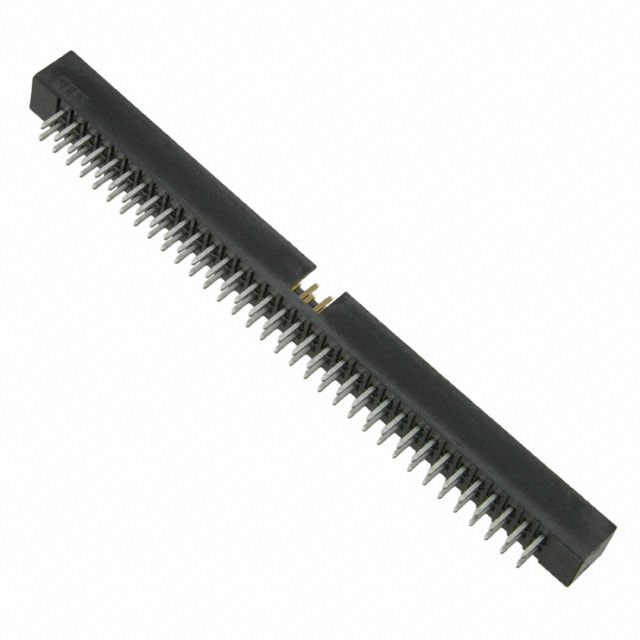

957268-6002-AR
![957268-6002-AR](/thumb/medium/c0/957268-6002-AR.jpg)
![](/upfile/linecard/medium_3M.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 957268-6002-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 957268-6002-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 957268-6002-AR |
---|---|
Manufacturer | 3M |
Description | CONN HDR 68POS 2MM VERT T-H 10AU |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | 957268-6002-AR | Manufacturer | 3M |
---|---|---|---|
Description | CONN HDR 68POS 2MM VERT T-H 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4787 pcs | Data sheet | 957 Series |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Shrouded - 4 Wall | Series | 957 |
Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
Packaging | Tray | Overall Contact Length | - |
Other Names | 04046719109951 4046719109951 4671910995 9572686002AR DE500037168 |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 68 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Thermoplastic | Insulation Height | 0.220" (5.60mm) |
Insulation Color | Black | Ingress Protection | - |
Features | Keying Slot | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 68 position 0.079" (2.00mm) | Current Rating | 1A |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
