929715-08-03-EU

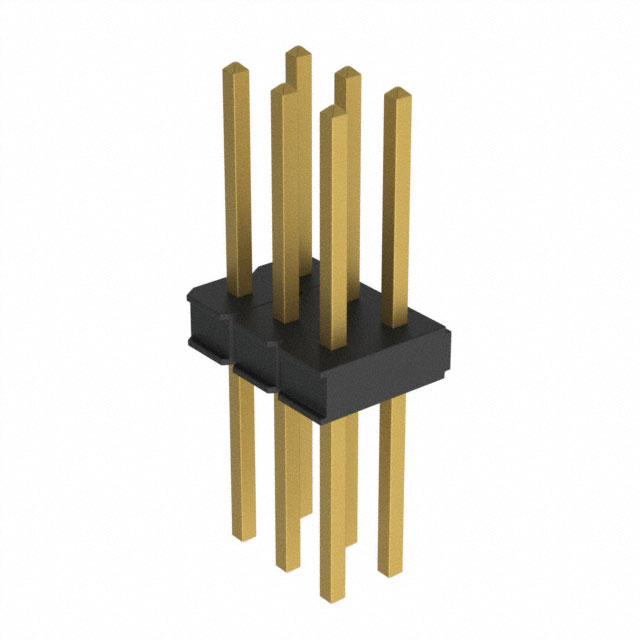

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929715-08-03-EU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929715-08-03-EU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 929715-08-03-EU |
---|---|
Manufacturer | 3M |
Description | CONN HEADER 6POS DL .100" GO |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.756 | $0.677 | $0.558 | $0.441 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.378 | $0.345 | $0.332 |
- Product parameter
- Data sheet
Product parameter
Part Number | 929715-08-03-EU | Manufacturer | 3M |
---|---|---|---|
Description | CONN HEADER 6POS DL .100" GO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 57214 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Shrouding | Unshrouded | Series | 929 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | 3M156377-06 | Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 6 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.100" (2.54mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) | Current Rating | 2.5A |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Copper Alloy | Contact Length - Post | - |
Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
