228-7396-55-1902

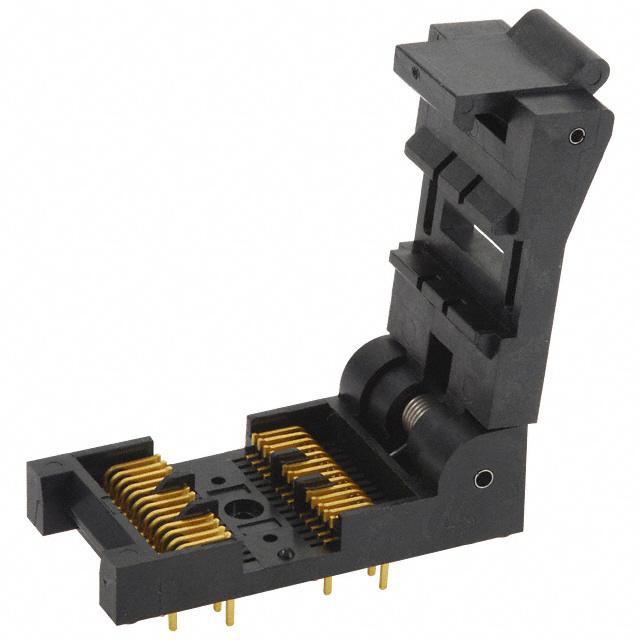

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 228-7396-55-1902 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 228-7396-55-1902 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 228-7396-55-1902 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET SOIC 28POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.442 | $13.038 | $12.492 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $11.711 | $11.321 | $10.696 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 228-7396-55-1902 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET SOIC 28POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3018 pcs | Data sheet | SOIC Socket Pin SequenceTest & Burn-In SOIC Sockets Datasheet |
| Category | Connectors, Interconnects | Type | SOIC |
| Termination Post Length | 0.140" (3.56mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | 0 51138 76532 3 2.2874E+12 2287396551902 3M5059 5113876532 51138765323 7000007716 JE150900890 |
Operating Temperature | -55°C ~ 150°C |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyethersulfone (PES), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
