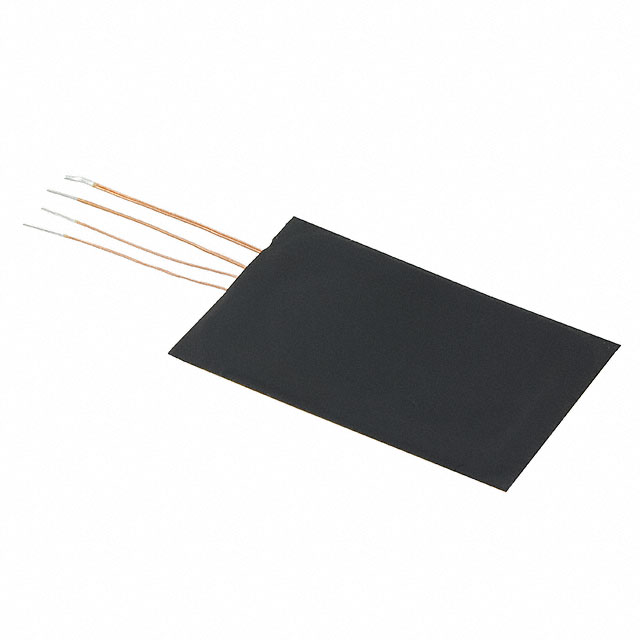

760308103307
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 760308103307 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 760308103307 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 760308103307 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | WE-WPCC WIRELESS POWER CHARGING |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 500 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $4.252 | $3.673 | $3.286 | $3.093 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 760308103307 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | WE-WPCC WIRELESS POWER CHARGING | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11594 pcs | Data sheet | 760308103307 Drawing |
| Category | Inductors, Coils, Chokes | Type | 2 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) |
| Series | WE-WPCC | Q @ Freq | 19 @ 125kHz, 47 @ 125kHz |
| Other Names | 732-10832 | Operating Temperature | -20°C ~ 105°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 7.8µH, 1.6µH |
| Function | Receiver | Frequency - Self Resonant | 22MHz, 24MHz |
| Detailed Description | 2 Coil, 1 Layer 7.8µH, 1.6µH Wireless Charging Coil Receiver 340 mOhm Max, 90 mOhm Max | DC Resistance (DCR) | 340 mOhm Max, 90 mOhm Max |
| Current Rating | 1.5A, 4A | Current - Saturation | 3A, 7A |
