Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > PI3422-00-EVAL1

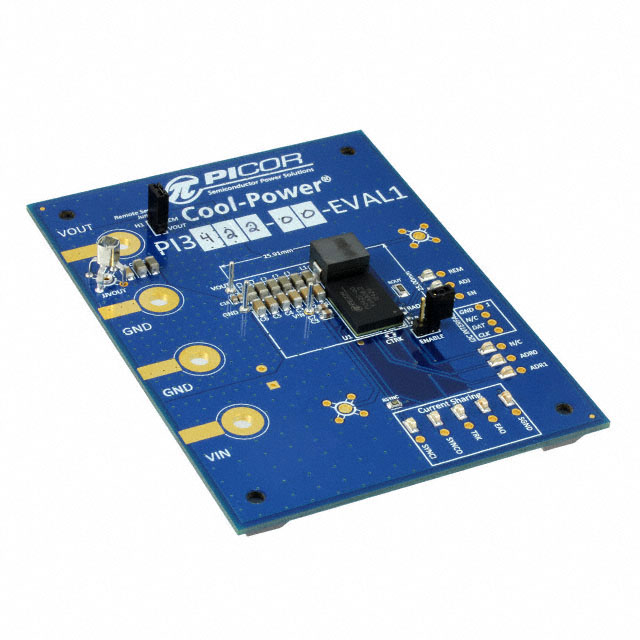

PI3422-00-EVAL1

PI3422-00-EVAL1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3422-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3422-00-EVAL1
Manufacturer	Vicor
Description	PICOR COOL-POWER EVAL PI3422-00
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2129 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$14.04

Product parameter
Data sheet

Product parameter

Part Number	PI3422-00-EVAL1	Manufacturer	Vicor
Description	PICOR COOL-POWER EVAL PI3422-00	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2129 pcs	Data sheet	PI34xx-00
Category	Development Boards, Kits, Programmers	Voltage - Output	2.5V
Voltage - Input	8 V ~ 18 V	Utilized IC / Part	PI3422-00
Supplied Contents	Board(s)	Series	Cool-Power®
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	1102-1636	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	650kHz
Detailed Description	PI3422-00 Cool-Power® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board	Current - Output	15A
Board Type	Fully Populated
