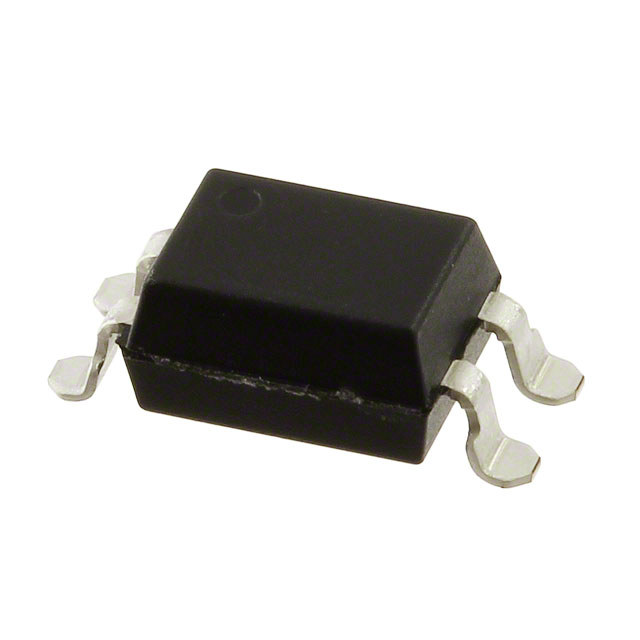

TLP785(GR-TP6,F)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP785(GR-TP6,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP785(GR-TP6,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP785(GR-TP6,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISOLATR 5KV TRANSISTOR 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.06 | $0.056 | $0.054 | $0.051 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP785(GR-TP6,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATR 5KV TRANSISTOR 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 401548 pcs | Data sheet | TLP785(F) |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 2µs, 3µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | TLP785(GR-TP6,F(C TLP785(GR-TP6F)TR TLP785GRTP6F |
Operating Temperature | -55°C ~ 110°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min) | 100% @ 5mA | Current Transfer Ratio (Max) | 300% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 60mA |
