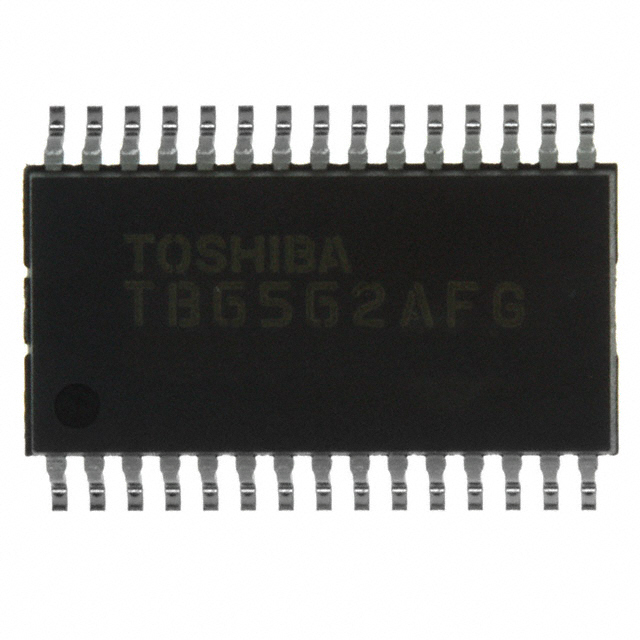

TB6562AFG,8,EL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB6562AFG,8,EL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB6562AFG,8,EL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB6562AFG,8,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 30SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.589 | $0.559 | $0.538 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB6562AFG,8,EL | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 30SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65736 pcs | Data sheet | TB6562ANG,AFG |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 34 V |
| Voltage - Load | 10 V ~ 34 V | Technology | DMOS |
| Supplier Device Package | 30-SSOP | Step Resolution | 1, 1/2, 1/4 |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 30-BSOP (0.295", 7.50mm Width) | Output Configuration | Half Bridge (4) |
| Other Names | TB6562AFG (O,8,EL) TB6562AFG(EL) TB6562AFG(O,8,EL) TB6562AFG(O,EL) TB6562AFG(O,EL)-ND TB6562AFG(O8EL)TR TB6562AFG(O8EL)TR-ND TB6562AFG(OEL) TB6562AFG(OEL)-ND TB6562AFG(OEL)TR TB6562AFG(OEL)TR-ND TB6562AFG8ELTR TB6562AFGO8EL TB6562AFGOELTR TB6562AFGOELTR-ND TB6562AFGTR TB6562AFGTR-ND |
Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel | Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Bipolar Motor Driver DMOS Parallel 30-SSOP | Current - Output | 1.5A |
| Applications | General Purpose |
