TSM240N03CX6 RFG

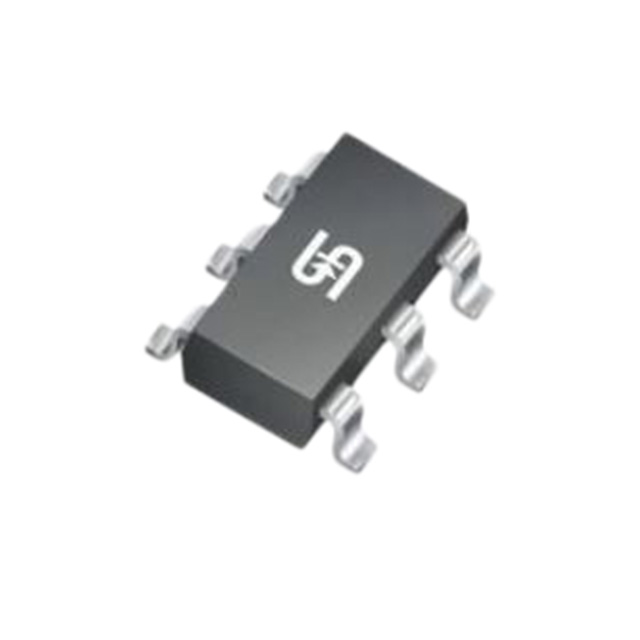

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TSM240N03CX6 RFG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TSM240N03CX6 RFG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TSM240N03CX6 RFG |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | MOSFET N-CHANNEL 30V 6.5A SOT26 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.046 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TSM240N03CX6 RFG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N-CHANNEL 30V 6.5A SOT26 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 425014 pcs | Data sheet | TSM240N03CX6 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-26 | Series | - |
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 6A, 10V | Power Dissipation (Max) | 1.56W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-23-6 |
| Other Names | TSM240N03CX6 RFGTR TSM240N03CX6 RFGTR-ND TSM240N03CX6RFGTR |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 28 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 345pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 4.1nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 6.5A (Tc) 1.56W (Tc) Surface Mount SOT-26 | Current - Continuous Drain (Id) @ 25°C | 6.5A (Tc) |
