Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils > WT242490-30F2-G

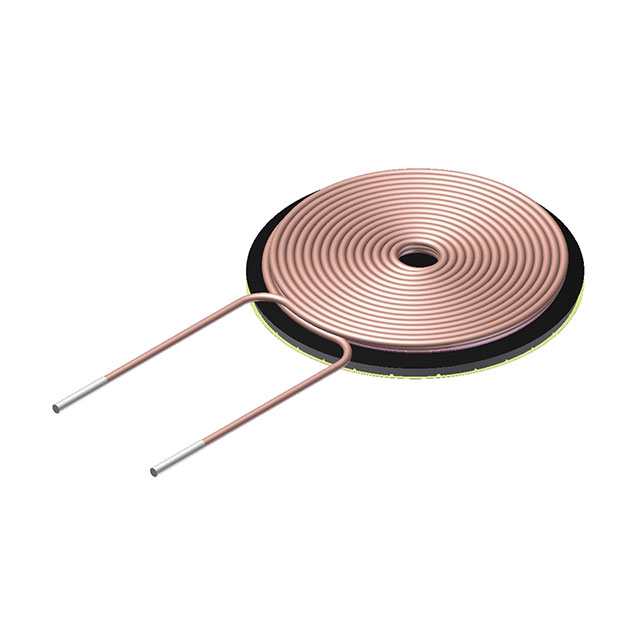

WT242490-30F2-G

WT242490-30F2-G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT242490-30F2-G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	WT242490-30F2-G
Manufacturer	TDK Corporation
Description	TX 1 COIL, 1 LYR 12.9UH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	540 pcs	1080 pcs	2700 pcs
~~In Stock~~ 28748 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs
	$2.317	$2.105	$1.431
	$1.305	$1.221	$1.179

Product parameter
Data sheet

Product parameter

Part Number	WT242490-30F2-G	Manufacturer	TDK Corporation
Description	TX 1 COIL, 1 LYR 12.9UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28748 pcs	Data sheet	WT242490-30F2-G Spec
Category	Inductors, Coils, Chokes	Type	1 Coil, 1 Layer
Tolerance	±10%	Size / Dimension	0.965" Dia x 0.094" H (24.50mm x 2.38mm)
Series	WT	Q @ Freq	-
Other Names	445-175308	Operating Temperature	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	12.9µH	Function	Transmitter
Frequency - Self Resonant	-	Detailed Description	1 Coil, 1 Layer 12.9µH Wireless Charging Coil Transmitter 165 mOhm
DC Resistance (DCR)	165 mOhm	Current Rating	-
Current - Saturation	-
