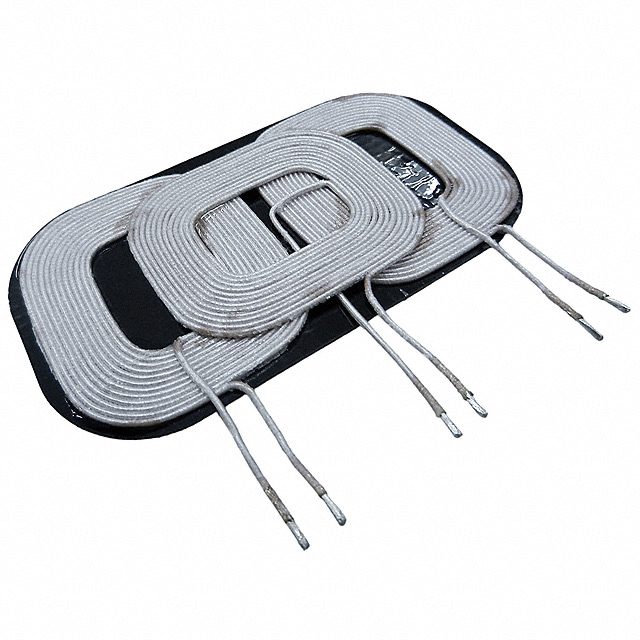

WT-1005660-12K2-A6-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy WT-1005660-12K2-A6-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy WT-1005660-12K2-A6-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | WT-1005660-12K2-A6-G |
|---|---|
| Manufacturer | TDK Corporation |
| Description | TRANSMITTER 3 COIL 1 LAYER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 36 pcs | |||
|---|---|---|---|---|---|
| $6.283 | $5.763 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | WT-1005660-12K2-A6-G | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | TRANSMITTER 3 COIL 1 LAYER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5205 pcs | Data sheet | WT-1005660-12K2-A6-G Spec |
| Category | Inductors, Coils, Chokes | Type | 3 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm) |
| Series | WT | Q @ Freq | 70 @ 100kHz |
| Other Names | 445-9308 WT100566012K2A6G |
Operating Temperature | -30°C ~ 70°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 12.5µH, 11.5µH, 12.5µH |
| Function | Transmitter | Frequency - Self Resonant | - |
| Detailed Description | 3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 80 mOhm Max | DC Resistance (DCR) | 80 mOhm Max |
| Current Rating | - | Current - Saturation | - |
