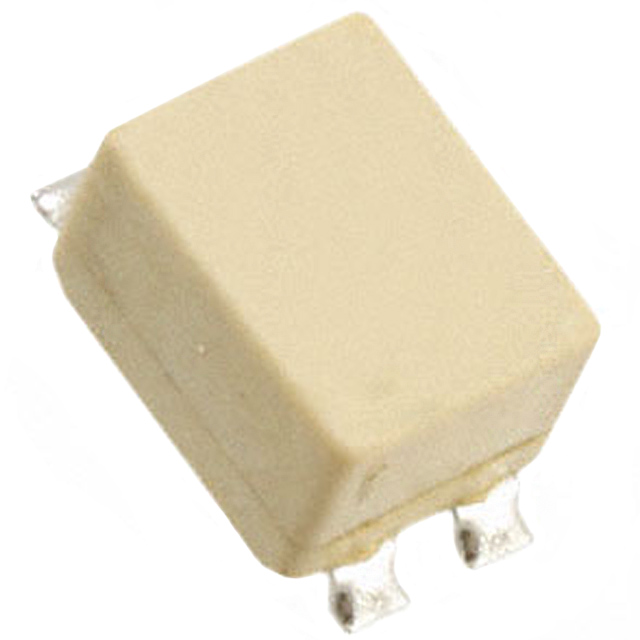

CPFC74NP-PS01H2A30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPFC74NP-PS01H2A30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPFC74NP-PS01H2A30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPFC74NP-PS01H2A30 |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | COMMON MODE CHOKE 3A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.518 | $0.48 | $0.347 | $0.266 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPFC74NP-PS01H2A30 | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81243 pcs | Data sheet | CPFC74 Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.374" L x 0.224" W (9.50mm x 5.70mm) |
| Series | CPFC | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Vertical, 4 Gull Wing |
| Other Names | 308-1561-1 | Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.200" (5.08mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 3A DCR 60 mOhm (Typ) | DC Resistance (DCR) (Max) | 60 mOhm (Typ) |
| Current Rating (Max) | 3A | Approvals | - |
