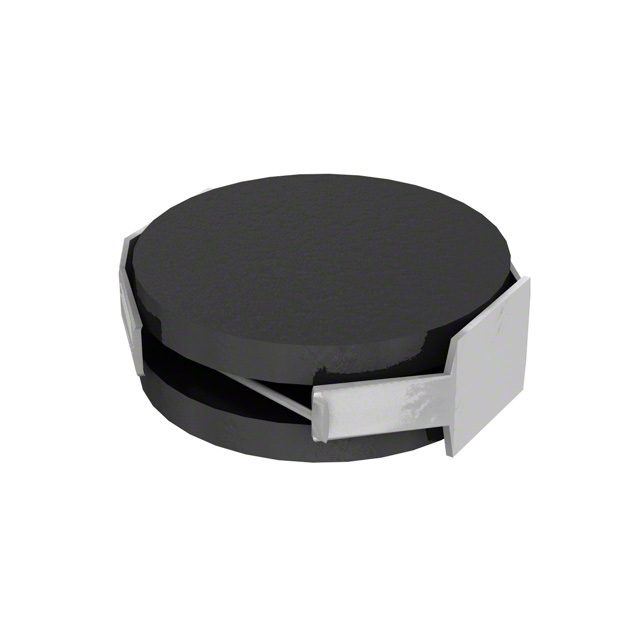

CDH2D09BNP-2R4MC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDH2D09BNP-2R4MC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDH2D09BNP-2R4MC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDH2D09BNP-2R4MC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 2.4UH 1.18A 160 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $0.135 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDH2D09BNP-2R4MC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 2.4UH 1.18A 160 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 177960 pcs | Data sheet | CDH2D09B Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.112" L x 0.106" W (2.85mm x 2.70mm) | Shielding | Unshielded |
| Series | CDH2D09B | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.4µH |
| Height - Seated (Max) | 0.039" (1.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.4µH Unshielded Inductor 1.18A 160 mOhm Max Nonstandard | DC Resistance (DCR) | 160 mOhm Max |
| Current Rating | 1.18A | Current - Saturation | 1A |
