PC354N1J000F

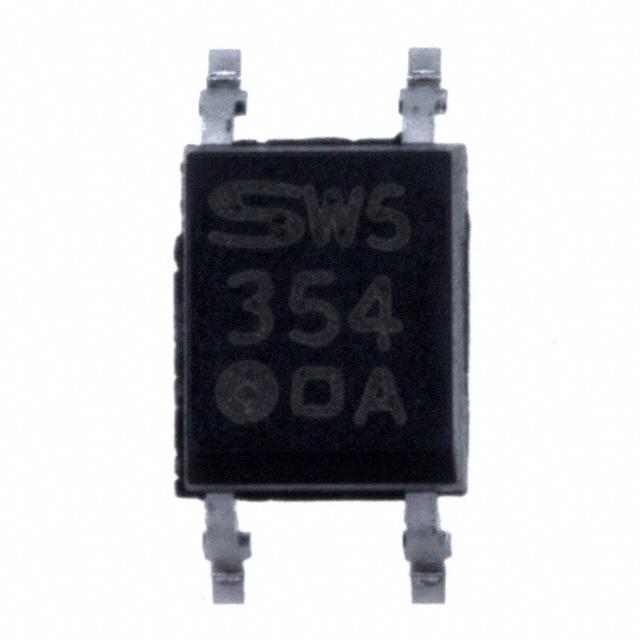

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC354N1J000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC354N1J000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC354N1J000F |
|---|---|
| Manufacturer | Socle Technology Corporation |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.15 | $0.147 | $0.141 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC354N1J000F | Manufacturer | Socle Technology Corporation |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRANS 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 166351 pcs | Data sheet | PC354NJ0000F |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | 1855-1003-2 425-2087-2 425-2087-2-ND |
Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 4-SMD | Current Transfer Ratio (Min) | 50% @ 1mA |
| Current Transfer Ratio (Max) | 150% @ 1mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
