SC4806MLTRT

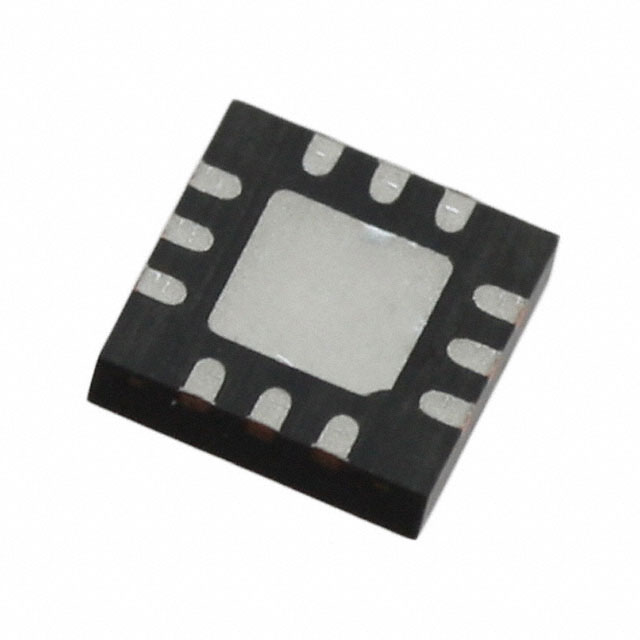

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC4806MLTRT with confidence from Components-World.HK, 1 Year Warranty
Dowload SC4806MLTRT Details in PDFSee Product Specifications for product details.
Buy SC4806MLTRT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC4806MLTRT |
|---|---|
| Manufacturer | Semtech |
| Description | IC REG CTRLR BUCK 12MLPQ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.328 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC4806MLTRT | Manufacturer | Semtech |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 12MLPQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69175 pcs | Data sheet | SC4806 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 7.4 V ~ 8.6 V |
| Topology | Buck | Synchronous Rectifier | No |
| Supplier Device Package | 12-MLPQ (4x4) | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-VQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive, Isolation Capable |
| Operating Temperature | -40°C ~ 105°C (TA) | Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 50kHz ~ 1MHz |
| Duty Cycle (Max) | 49% | Detailed Description | Buck Regulator Positive, Isolation Capable Output Step-Down DC-DC Controller IC 12-MLPQ (4x4) |
| Control Features | Current Limit, Frequency Control, Ramp, Soft Start | Clock Sync | Yes |
