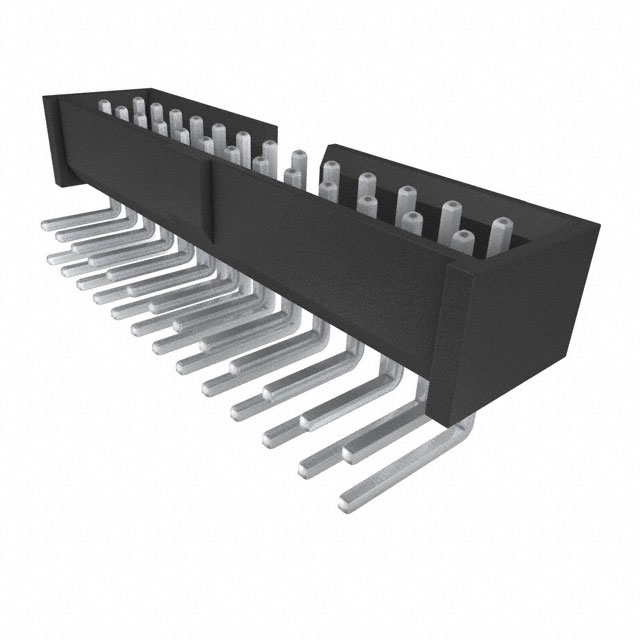

LTMM-113-02-T-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTMM-113-02-T-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTMM-113-02-T-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTMM-113-02-T-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUD STACKER 26POS RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.014 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTMM-113-02-T-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUD STACKER 26POS RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37006 pcs | Data sheet | LTMM-1XX-XX-XX-D-XX-XX DrawingLTMM-1xx-xx-xx-D-xx-xx FootprintSTMM/LTMM, ZSTMM/ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, LTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.237" (6.03mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
