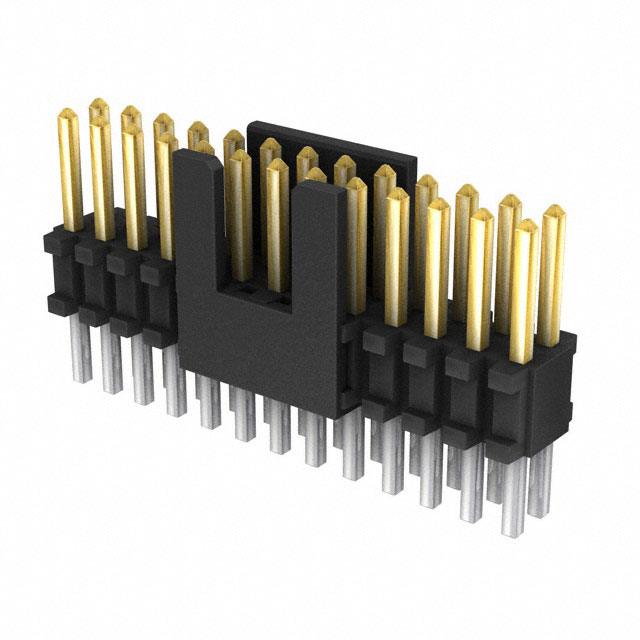

FTSH-113-01-L-D-K
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FTSH-113-01-L-D-K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FTSH-113-01-L-D-K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FTSH-113-01-L-D-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 26POS DUAL .05" VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 35 pcs | 105 pcs | 525 pcs | 1015 pcs |
|---|---|---|---|---|---|
| $1.91 | $1.681 | $1.528 | $1.299 | $1.108 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FTSH-113-01-L-D-K | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 26POS DUAL .05" VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31064 pcs | Data sheet | FTSH Double Row, Through Hole FootprintFTSH-1yy-yy-yy-D-yy-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | FTSH |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.309" (7.86mm) |
| Other Names | FTSH-113-01-L-D-K-ND SAM8804 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.099" (2.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Shroud |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.050" (1.27mm) |
| Current Rating | 3.4A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.090" (2.29mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Cuttable | Applications | - |
