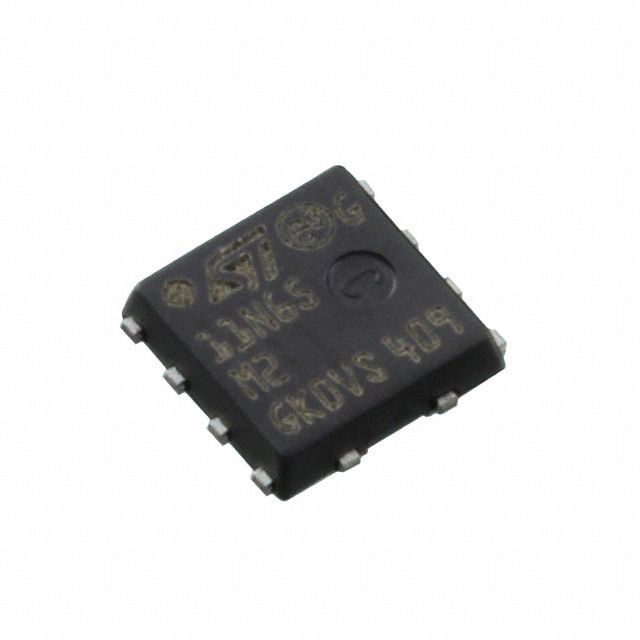

STL11N65M2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STL11N65M2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STL11N65M2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STL11N65M2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 650V POWERFLAT 5X5 H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.865 | $0.781 | $0.627 | $0.488 | $0.404 | |
- Product parameter
Product parameter
| Part Number | STL11N65M2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 650V POWERFLAT 5X5 H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87483 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±25V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | - | Series | - |
| Rds On (Max) @ Id, Vgs | 670 mOhm @ 3.5A, 10V | Power Dissipation (Max) | 85W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | - |
| Other Names | 497-15053-1 | Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 42 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 410pF @ 100V | Gate Charge (Qg) (Max) @ Vgs | 12.4nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 650V |
| Detailed Description | N-Channel 650V 7A (Tc) 85W (Tc) Surface Mount | Current - Continuous Drain (Id) @ 25°C | 7A (Tc) |
