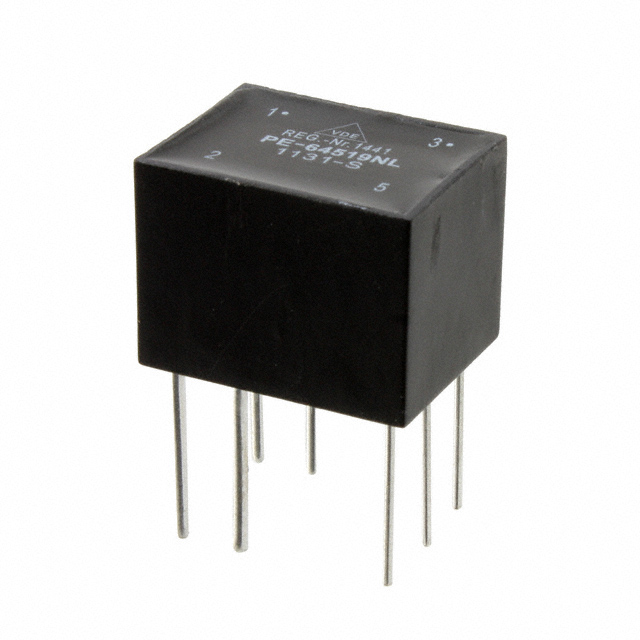

PE-64519NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-64519NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-64519NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-64519NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $1.948 | $1.479 | $1.44 | $1.324 | ||
| 135 pcs | 270 pcs | 540 pcs | 1035 pcs | ||
| $1.246 | $1.207 | $1.168 | $1.129 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-64519NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30172 pcs | Data sheet | PE-51(6,7)xx, PE-63(5,6)xx, PE-64(4,5)xx |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.900" L x 0.700" W (22.86mm x 17.78mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1741 PE-64519NL-ND PE64519NL |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 80mH | Height - Seated (Max) | 0.700" (17.78mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | - |
| Detailed Description | 20A Current Sense Transformer 20kHz ~ 200kHz 200 Ohm Primary, 4.5 Ohm Secondary 80mH Through Hole | DC Resistance (DCR) | 200 Ohm Primary, 4.5 Ohm Secondary |
| Current Ratio | 200CT:1 | Current Rating | 20A |
