23Z104SM

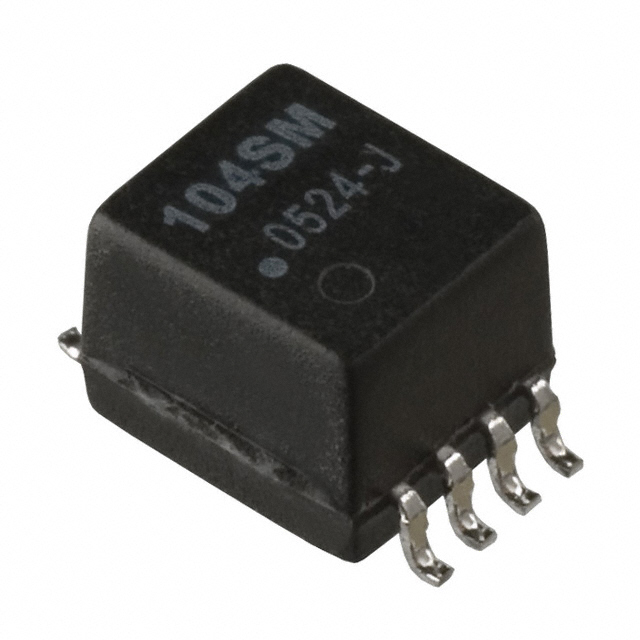

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 23Z104SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 23Z104SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 23Z104SM |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 4LN SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 23Z104SM | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 4LN SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5646 pcs | Data sheet | Common Mode Chokes Catalog |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.230" L x 0.265" W (5.84mm x 6.73mm) |
| Series | - | Ratings | - |
| Packaging | Bulk | Package / Case | 8-SOIC (0.265", 6.73mm Width) |
| Other Names | 553-1233 | Operating Temperature | - |
| Number of Lines | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.220" (5.59mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 4 Line Common Mode Choke Surface Mount DCR 200 mOhm |
| DC Resistance (DCR) (Max) | 200 mOhm | Current Rating (Max) | - |
| Approvals | - |
