1952474

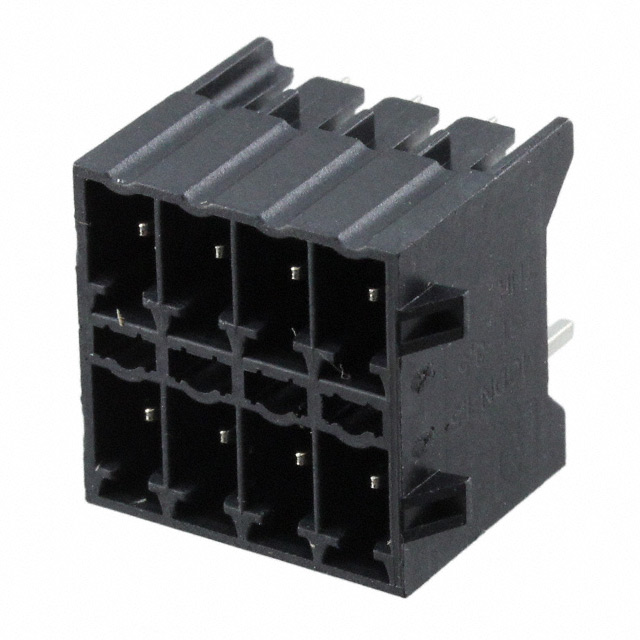

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1952474 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1952474 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1952474 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 8POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.641 | $1.595 | $1.49 | $1.371 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.267 | $1.207 | $1.133 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1952474 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 8POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33078 pcs | Data sheet | MINI COMBICON Double-Level Headers1952474 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 150V | Voltage - IEC | 250V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MCDNV |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1952474-ND 277-14452 MCDNV 1 5/ 4-G1-3 5 RNP26THR |
| Operating Temperature | - | Number of Positions | 8 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.524" (13.30mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP) | Header Orientation | Vertical |
| Features | Locking Ramp | Detailed Description | 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole |
| Current - UL | 8A | Current - IEC | 8A per Position |
| Contact Tail Length | 0.102" (2.60mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
