1762046

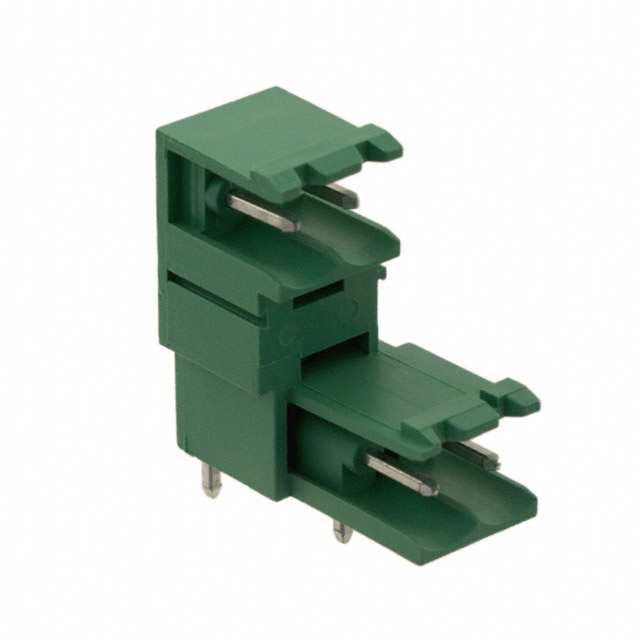

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1762046 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1762046 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1762046 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 4POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.836 | $0.812 | $0.759 | $0.698 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.645 | $0.615 | $0.577 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1762046 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57919 pcs | Data sheet | 1762046 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (2 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MDSTB |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-1379 MDSTB 2,5/2-G MDSTB2,5/2-G |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.933" (23.70mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | Interlocking (Side) | Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | 10A |
| Contact Tail Length | 0.126" (3.20mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
