1543236

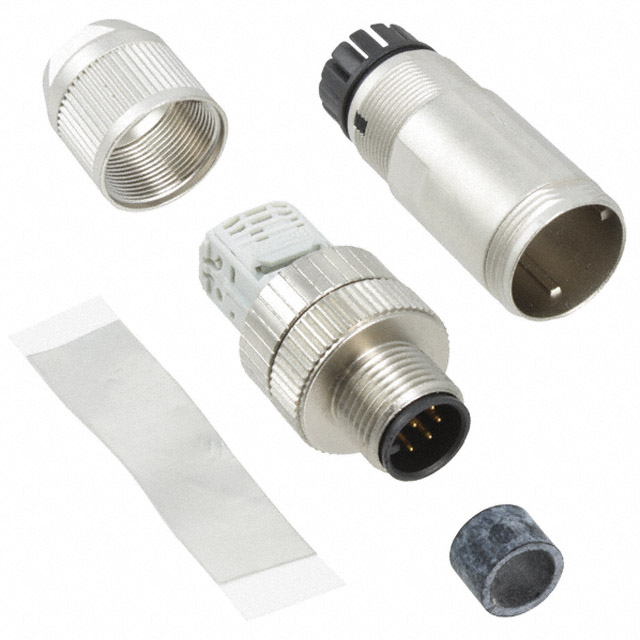

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1543236 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1543236 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1543236 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN PLUG MALE 8POS GOLD IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $16.315 | $15.01 | $13.868 | $13.215 | $12.40 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1543236 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN PLUG MALE 8POS GOLD IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3171 pcs | Data sheet | 1543236 |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC/DC |
| Termination | IDC | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | M12-8 |
| Shell Material | Zinc Die Cast | Shell Finish | Nickel |
| Series | SACC | Packaging | Bulk |
| Other Names | 1543236-ND 277-4259 SACC-M12MS-8Q SH SACC-M12MS-8QSH |
Orientation | A |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Threaded |
| Detailed Description | 8 Position Circular Connector Plug, Male Pins IDC Gold | Current Rating | 2A |
| Contact Material | Copper Tin | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | 0.157" ~ 0.315" (4.00mm ~ 8.00mm) |
| Backshell Material, Plating | Zinc Die Cast, Nickel | Applications | - |
