ELF-18D270C

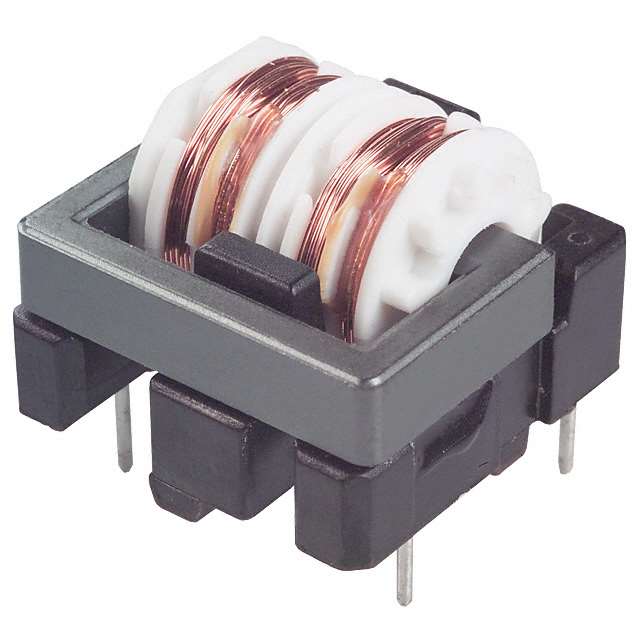

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-18D270C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-18D270C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-18D270C |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 1.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.74 | $0.714 | $0.524 | $0.512 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-18D270C | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74455 pcs | Data sheet | V and H SeriesELF18D2xxx Spec |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.787" L x 0.827" W (20.00mm x 21.00mm) |
| Series | H | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF18D270C PLK1257 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.787" (20.00mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 1.5A DCR 162 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 162 mOhm (Typ) | Current Rating (Max) | 1.5A |
| Approvals | - |
