ECH-U1C563JX5

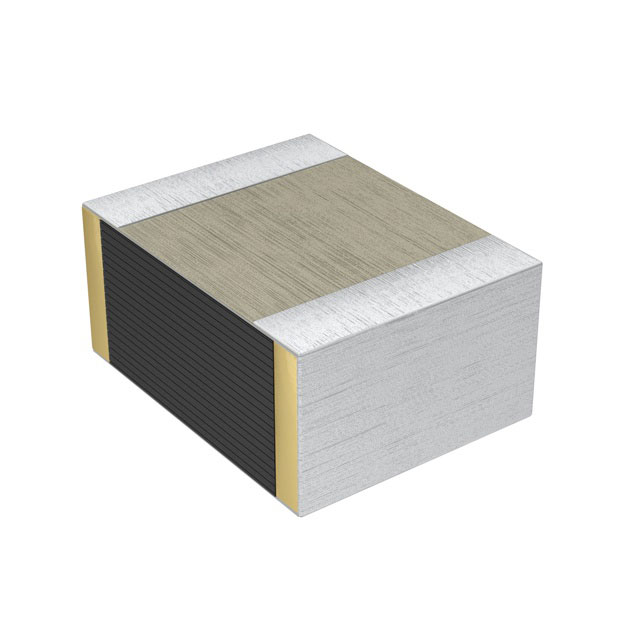

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECH-U1C563JX5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECH-U1C563JX5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECH-U1C563JX5 |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 0.056UF 5% 16VDC 1210 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.274 | $0.203 | $0.139 | $0.11 | $0.093 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ECH-U1C563JX5 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 0.056UF 5% 16VDC 1210 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 208661 pcs | Data sheet | ECH-U1C563JX5 View All Specifications |
| Category | Capacitors | Voltage Rating - DC | 16V |
| Voltage Rating - AC | - | Tolerance | ±5% |
| Termination | Solder Pads | Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Series | ECH-U(X) | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | 1210 (3225 Metric) |
| Other Names | PCF1205CT | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.067" (1.70mm) |
| Features | - | Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| Detailed Description | 0.056µF Film Capacitor 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 1210 (3225 Metric) | Capacitance | 0.056µF |
| Applications | General Purpose |
