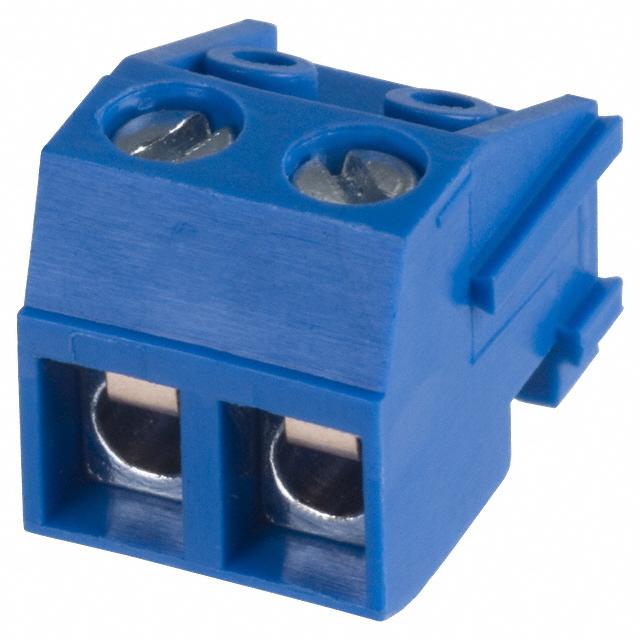

OSTTH020160
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OSTTH020160 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OSTTH020160 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OSTTH020160 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 2POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.379 | $0.236 | $0.202 | $0.181 | $0.177 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.151 | $0.143 | $0.128 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OSTTH020160 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223840 pcs | Data sheet | OSTTHxx01x0 |
| Category | Connectors, Interconnects | Wire Strip Length | 5-6mm |
| Wire Gauge or Range - mm² | 0.34-1.5mm² | Wire Gauge or Range - AWG | 14-22 AWG |
| Voltage - UL | 300V | Type | Plug for Unshrouded Header |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | Termination Style | Screw |
| Series | OSTTH | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | ED2655 EDC130/2DS |
Operating Temperature | -40°C ~ 115°C |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Brass |
| Header Orientation | - | Features | Interlocking (Side) |
| Detailed Description | 2 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) Free Hanging (In-Line) | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Nickel |
| Contact Material | Brass | Color | Blue |
