Home > Products > Switches > Snap Action, Limit Switches > VX-56K-1A3

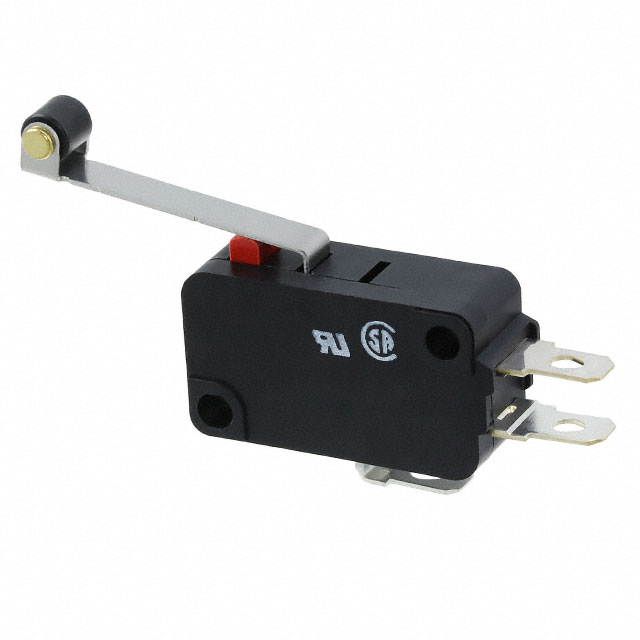

VX-56K-1A3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VX-56K-1A3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VX-56K-1A3
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32080 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$1.229

Product parameter
Data sheet

Product parameter

Part Number	VX-56K-1A3	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32080 pcs	Data sheet	VX Series
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	VX
Release Force	1.020gf	Pretravel	0.283" (7.2mm)
Packaging	Bulk	Overtravel	0.098" (2.5mm)
Other Names	VX56K1A3 Z5186	Operating Temperature	-25°C ~ 80°C
Operating Position	0.815" (20.7mm)	Operating Force	18gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.080" (2.0mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Roller
