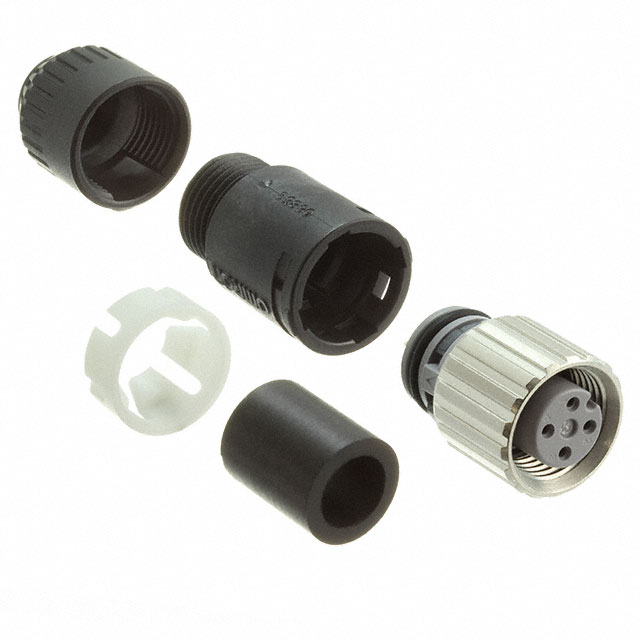

XS2C-D423
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XS2C-D423 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XS2C-D423 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XS2C-D423 |
|---|---|
| Manufacturer | Omron Automation & Safety |
| Description | CONN RCPT FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.733 | $5.211 | $5.081 | $4.69 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.429 | $4.039 | $3.778 | $3.465 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | XS2C-D423 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9691 pcs | Data sheet | XS2 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 125VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M12-4 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | XS2 | Packaging | Bulk |
| Other Names | XS2C-D423-ND XS2CD423 XS2CD423NC Z5383 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 3A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 16.0µin (0.40µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver | Cable Opening | 0.157" ~ 0.197" (4.00mm ~ 5.00mm) |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) | Applications | - |
