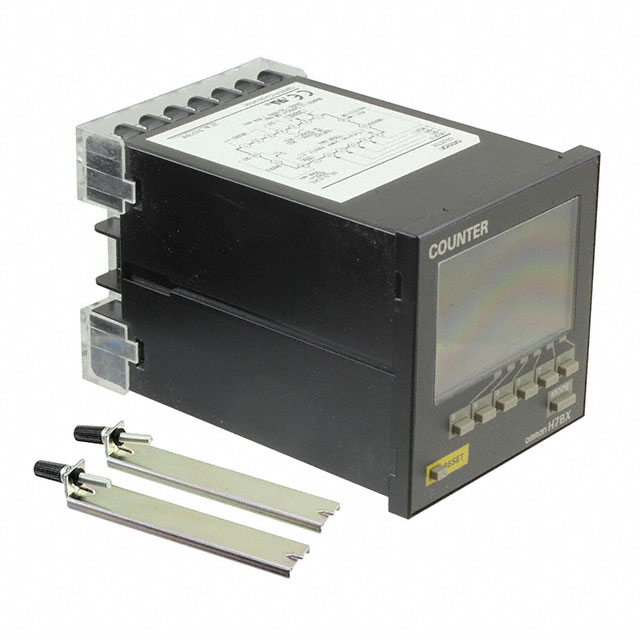

H7BX-AD1 AC24DC1224
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H7BX-AD1 AC24DC1224 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H7BX-AD1 AC24DC1224 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H7BX-AD1 AC24DC1224 |
|---|---|
| Manufacturer | Omron Automation & Safety |
| Description | COUNTER LCD 6 CHAR 24V PANEL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $139.648 | $134.993 | $125.683 | |||
- Product parameter
Product parameter
| Part Number | H7BX-AD1 AC24DC1224 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | COUNTER LCD 6 CHAR 24V PANEL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 300 pcs | Data sheet | |
| Category | Industrial Controls | Weight | - |
| Voltage - Supply | 24VAC, 12 ~ 24VDC | Type | Preset, Totalizer |
| Time Format | - | Termination Style | Screw Terminal |
| Series | H7BX | Reset | External, Front Panel, Programmable |
| Panel Cutout Dimensions | Square - 68.00mm x 68.00mm | Output Type | Relay, Solid State |
| Other Names | H7BX-AD1 AC24DC1224-ND H7BX-AD1AC24DC1224 H7BX-AD1AC24DC1224-ND H7BX/AD1 AC24DC1224 H7BXAD1AC24DC1224 Z9633 |
Operating Temperature | -10°C ~ 55°C |
| Operating Mode | Up, Down, Command, Individual, Quadrature | Number Of Characters Per Row | 6, 6 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | No Voltage, Voltage | Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Display Type | LCD - Dual Color Characters, Backlight | Display Characters - Height | 0.531" (13.50mm), 0.354" (9.00mm) |
| Count Rate | 30Hz, 5kHz |
