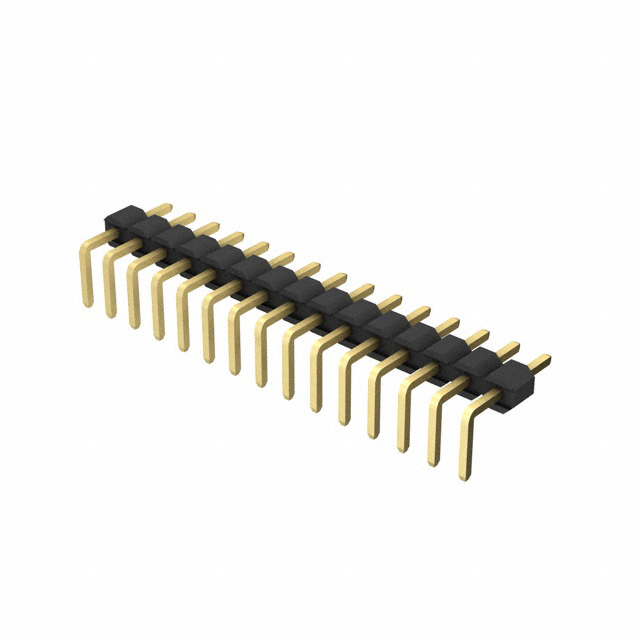

27631502RP2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 27631502RP2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 27631502RP2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 27631502RP2 |
|---|---|
| Manufacturer | NorComp |
| Description | CONN HDR 2MM MALE 1ROW RA 15POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.791 | $0.684 | $0.579 | $0.46 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.375 | $0.342 | $0.329 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 27631502RP2 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN HDR 2MM MALE 1ROW RA 15POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67618 pcs | Data sheet | 2763yy02RP2 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | 2763 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 2763R-15 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 15 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
