Home > Products > Capacitors > Aluminum - Polymer Capacitors > PCR1H120MCL1GS

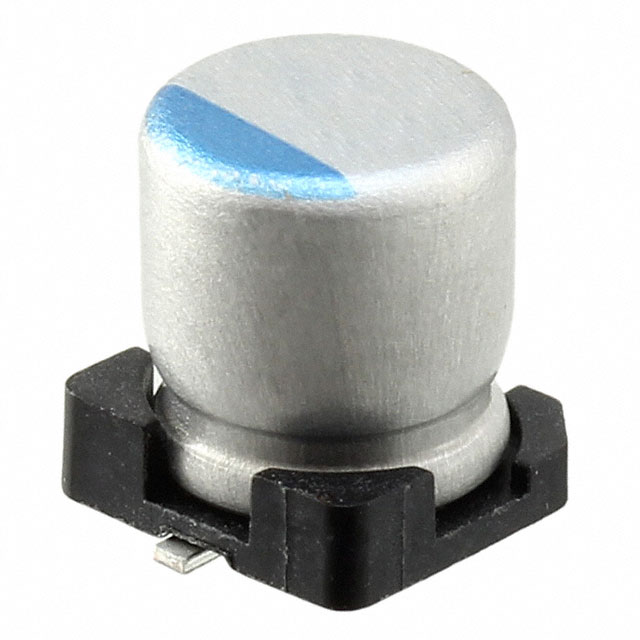

PCR1H120MCL1GS

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCR1H120MCL1GS with confidence from Components-World.HK, 1 Year Warranty

Dowload PCR1H120MCL1GS Details in PDF

Request a Quote

Part Number	PCR1H120MCL1GS
Manufacturer	Nichicon
Description	CAP ALUM POLY 12UF 20% 50V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 70424 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$0.325

Product parameter
Data sheet

Product parameter

Part Number	PCR1H120MCL1GS	Manufacturer	Nichicon
Description	CAP ALUM POLY 12UF 20% 50V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70424 pcs	Data sheet	Chip Type Tape Spec PCR Series Polymer Aluminum Land, Reflow
Category	Capacitors	Voltage - Rated	50V
Type	Polymer	Tolerance	±20%
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)	Size / Dimension	0.197" Dia (5.00mm)
Series	PCR	Ripple Current @ High Frequency	600mA @ 100kHz
Ratings	-	Packaging	Original-Reel®
Package / Case	Radial, Can - SMD	Other Names	493-13766-6
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lifetime @ Temp.	4000 Hrs @ 125°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.240" (6.10mm)	ESR (Equivalent Series Resistance)	88 mOhm
Detailed Description	12µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 88 mOhm 4000 Hrs @ 125°C	Capacitance	12µF
Applications	General Purpose
