Home > Products > Switches > Pushbutton Switches > YB225CWCKW01-5C-JB

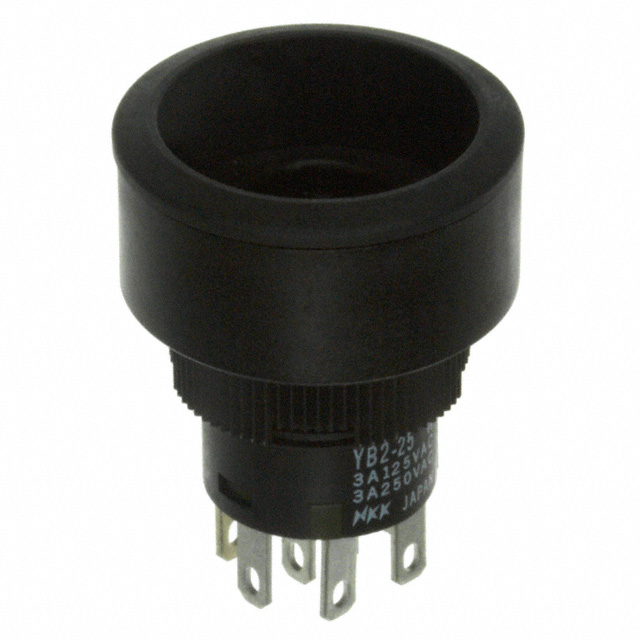

YB225CWCKW01-5C-JB

YB225CWCKW01-5C-JB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YB225CWCKW01-5C-JB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	YB225CWCKW01-5C-JB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3316 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$8.976

Product parameter
Data sheet

Product parameter

Part Number	YB225CWCKW01-5C-JB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3316 pcs	Data sheet	YB2 Panel Seal
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	YB2	Panel Cutout Dimensions	Circular - 22.00mm Dia
Packaging	Bulk	Other Names	YB225CWCKW01/CUL-5C-JB YB225CWCKW01/CUL-5C-JB-ND
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Illumination Voltage (Nominal)	1.9 VDC	Illumination Type, Color	LED, Red
Features	Epoxy Sealed Terminals	Electrical Life	100,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front	Current Rating	3A (AC/DC)
Color - Actuator/Cap	Clear (White Filter/Diffuser)	Circuit	DPDT
Actuator Type	Round, Button, Flush
