Home > Products > Switches > Pushbutton Switches > YB16CKW01-GB

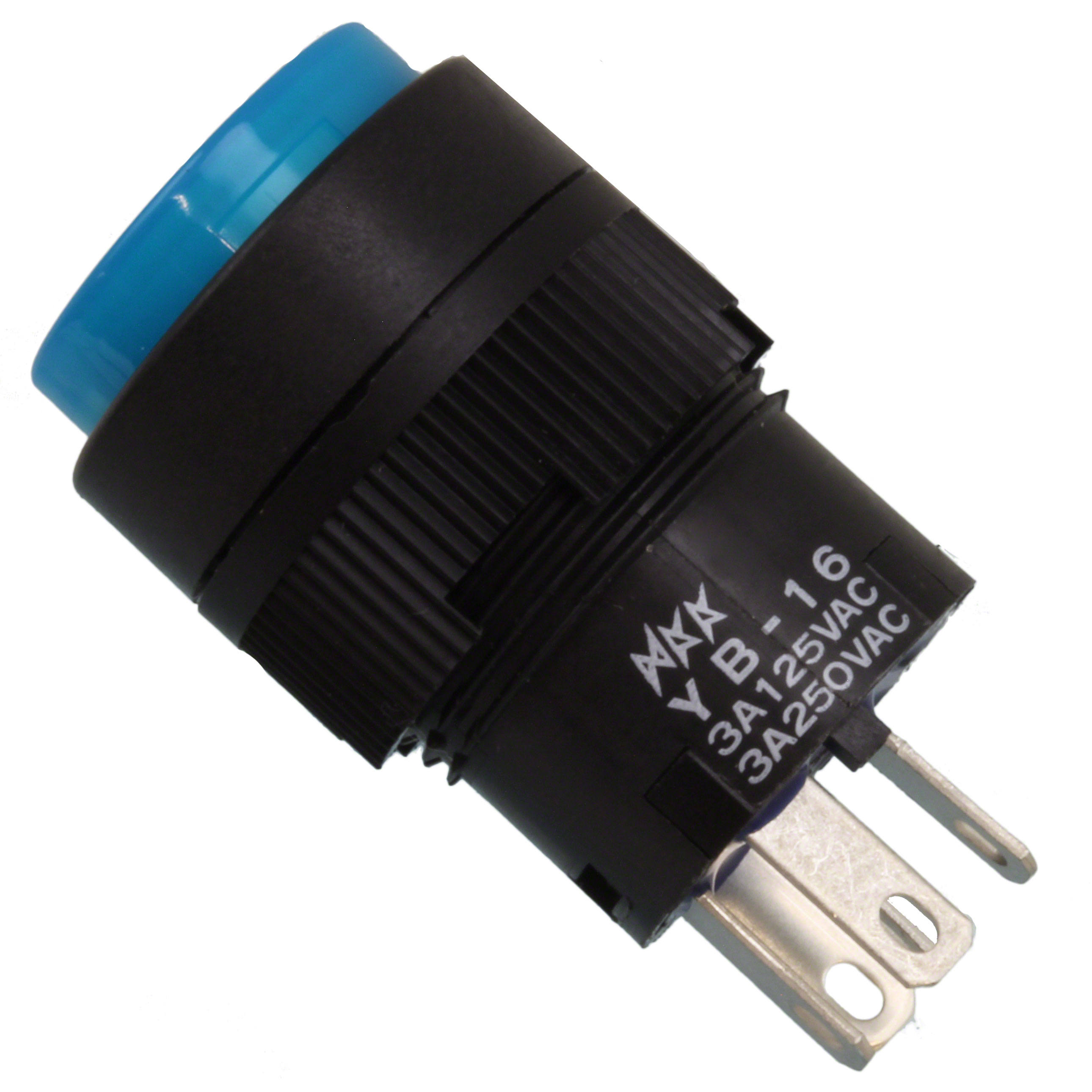

YB16CKW01-GB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YB16CKW01-GB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	YB16CKW01-GB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 8339 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.976

Product parameter
Data sheet

Product parameter

Part Number	YB16CKW01-GB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 3A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8339 pcs	Data sheet	YB Series Short Body PB
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)	Switch Function	On-On
Series	YB	Panel Cutout Dimensions	Circular - 16.00mm Dia
Packaging	Bulk	Other Names	360-3357 YB16CKW01-GB-ND YB16CKW01-GB-RO YB16CKW01-GB-RO-ND
Operating Temperature	-25°C ~ 70°C	Mounting Type	Panel Mount, Front
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	100,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front
Current Rating	3A (AC/DC)	Color - Actuator/Cap	Blue (White Filter/Diffuser)
Circuit	SPDT	Actuator Type	Round, Button
