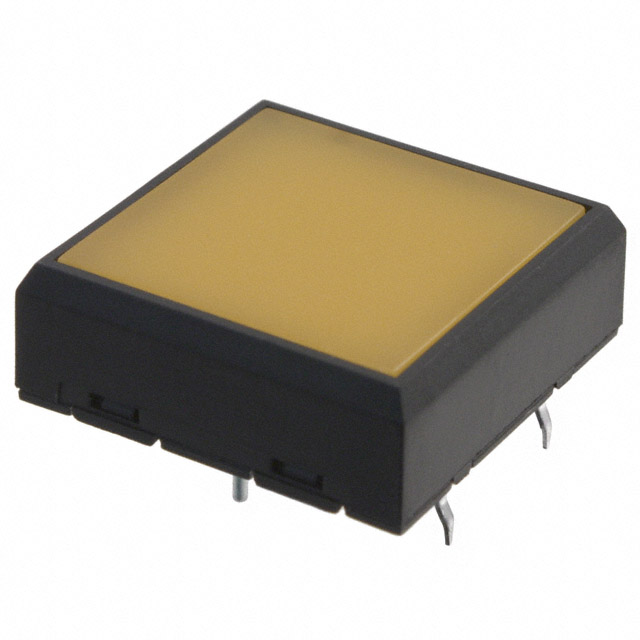

JL15SKSDDP2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL15SKSDDP2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL15SKSDDP2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | JL15SKSDDP2 |
---|---|
Manufacturer | NKK Switches |
Description | SWITCH TACTILE SPST-NO 0.05A 24V |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
---|---|---|---|---|---|
$7.15 | $6.945 | $6.536 | |||
50 pcs | 100 pcs | 250 pcs | |||
$6.128 | $5.433 | $5.311 |
- Product parameter
- Data sheet
Product parameter
Part Number | JL15SKSDDP2 | Manufacturer | NKK Switches |
---|---|---|---|
Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 7355 pcs | Data sheet | JL Series Ultra Thin Tactiles |
Category | Switches | Termination Style | PC Pin |
Switch Travel | 0.75mm | Switch Function | Off-Mom |
Series | JL | Packaging | Tray |
Outline | 22.00mm x 22.00mm | Other Names | JL15SKSDDP2-RO JL15SKSDDP2-RO-ND |
Operating Temperature | -25°C ~ 50°C | Operating Force | 300gf |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 18 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Illumination Voltage (Nominal) | 4 VDC | Illumination Type, Color | LED, Amber |
Illumination | Illuminated | Features | - |
Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
Circuit | SPST-NO | Actuator Type | Square Button |
Actuator Orientation | Top Actuated | Actuator Material | Polycarbonate (PC) |
Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.85mm |
