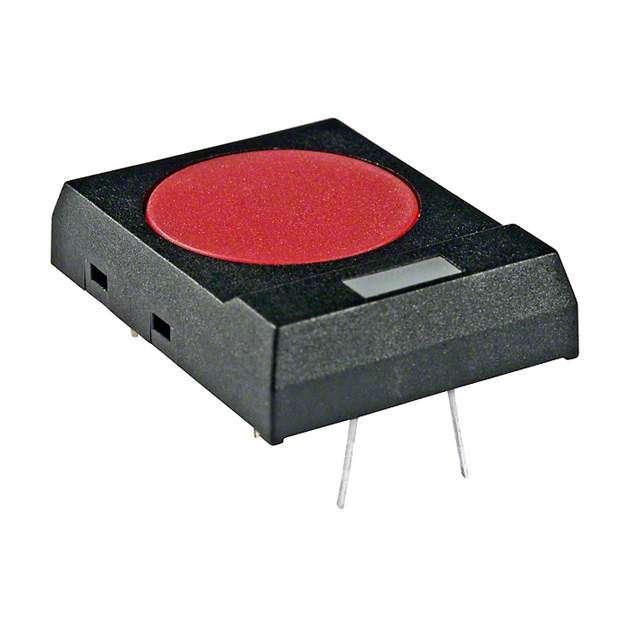

JF15RP2CC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JF15RP2CC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JF15RP2CC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JF15RP2CC |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.449 | $1.379 | $1.31 | $1.276 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.172 | $1.103 | $1.00 | $0.948 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JF15RP2CC | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40485 pcs | Data sheet | JF Series Ultra Thin Tactiles |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.40mm | Switch Function | Off-Mom |
| Series | JF | Packaging | Tray |
| Outline | 22.80mm x 17.70mm | Operating Temperature | -25°C ~ 70°C |
| Operating Force | 300gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 500,000 Cycles |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 1.7 VDC |
| Illumination Type, Color | LED, Red | Illumination | Illuminated |
| Features | Process Sealed | Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Circuit | SPST-NO |
| Actuator Type | Round Button | Actuator Orientation | Top Actuated |
| Actuator Material | Polyamide (PA), Nylon | Actuator Length, Right Angle | - |
| Actuator Height off PCB, Vertical | 5.08mm |
