Home > Products > Switches > Toggle Switches > B28JW

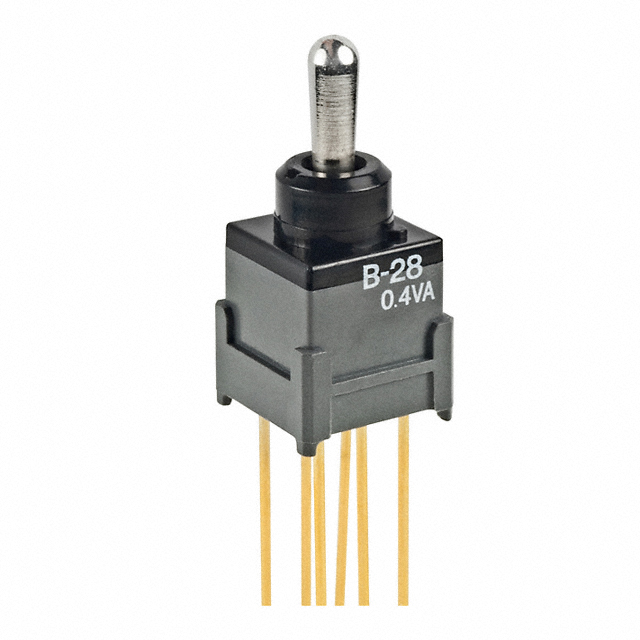

B28JW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B28JW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B28JW
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15812 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.989

Product parameter
Data sheet

Product parameter

Part Number	B28JW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15812 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Wire Wrap
Switch Function	Mom-Off-Mom	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	6.30mm
