Home > Products > Power Supplies - Board Mount > DC DC Converters > MPDTH12060WAH

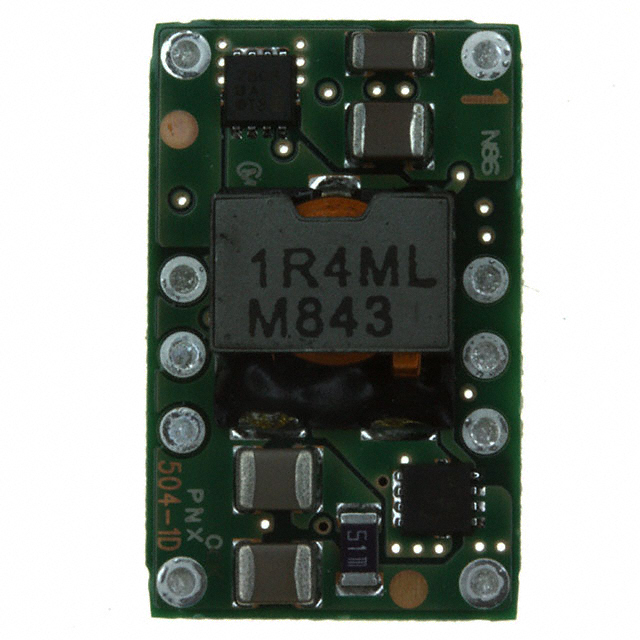

MPDTH12060WAH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPDTH12060WAH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPDTH12060WAH
Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 1.2-5.5V 55W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4775 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MPDTH12060WAH	Manufacturer	Murata Power Solutions
Description	DC DC CONVERTER 1.2-5.5V 55W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4775 pcs	Data sheet	MPDTHxx060 Series
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-	Voltage - Output 1	1.2 ~ 5.5 V
Voltage - Input (Min)	10.8V	Voltage - Input (Max)	13.2V
Type	Non-Isolated PoL Module	Size / Dimension	0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Series	MPD	Power (Watts)	55W
Packaging	Tray	Package / Case	10-DIP Module
Other Names	490-5107 MPDTH12060WAH-ND	Operating Temperature	-40°C ~ 85°C
Number of Outputs	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	2 (1 Year)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Efficiency	94%
Detailed Description	Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5 V 10A 10.8V - 13.2V Input	Current - Output (Max)	10A
Applications	ITE (Commercial)
