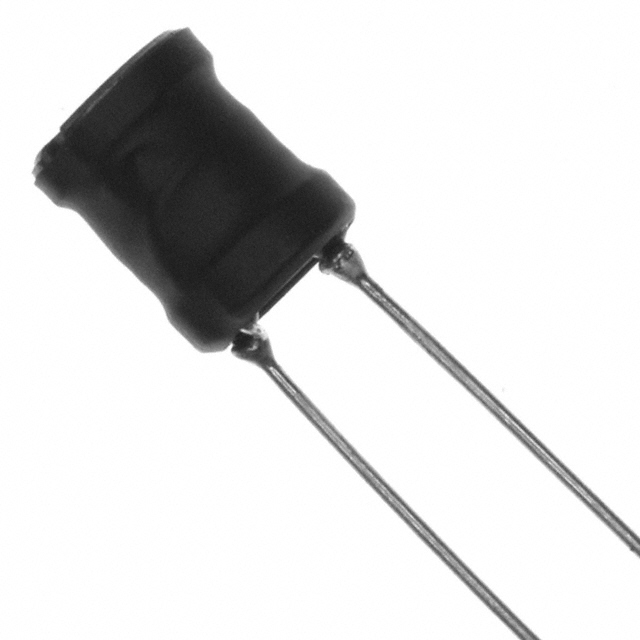

13R223C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 13R223C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 13R223C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 13R223C |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | FIXED IND 22UH 2A 70 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.215 | $0.212 | $0.204 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.197 | $0.182 | $0.17 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 13R223C | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | FIXED IND 22UH 2A 70 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 117194 pcs | Data sheet | 1300R Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.374" Dia (9.50mm) | Shielding | Unshielded |
| Series | 1300R | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | 13R223C-ND 811-2042 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 22µH |
| Height - Seated (Max) | 0.532" (13.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 22µH Unshielded Wirewound Inductor 2A 70 mOhm Max Radial | DC Resistance (DCR) | 70 mOhm Max |
| Current Rating | 2A | Current - Saturation | - |
