800-10-002-62-001000

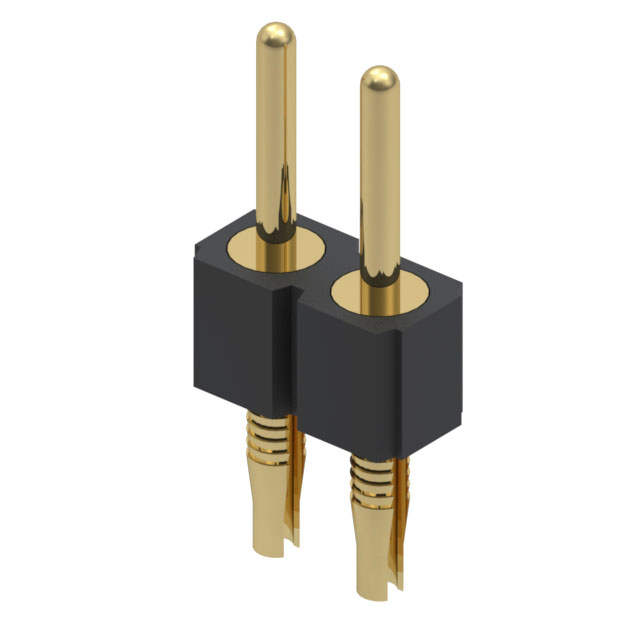

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 800-10-002-62-001000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 800-10-002-62-001000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 800-10-002-62-001000 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN HEADER 2POS .100 L.143 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.905 | $0.84 | $0.732 | $0.668 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.614 | $0.56 | $0.539 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 800-10-002-62-001000 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN HEADER 2POS .100 L.143 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62313 pcs | Data sheet | 800, 801 Press-Fit Series (metric)800, 801 Press-Fit Series (in.) |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 800 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.444" (11.28mm) |
| Other Names | ED9602 ED9602-ND ED9664-02 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass Alloy | Contact Length - Post | 0.143" (3.63mm) |
| Contact Length - Mating | 0.191" (4.85mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
