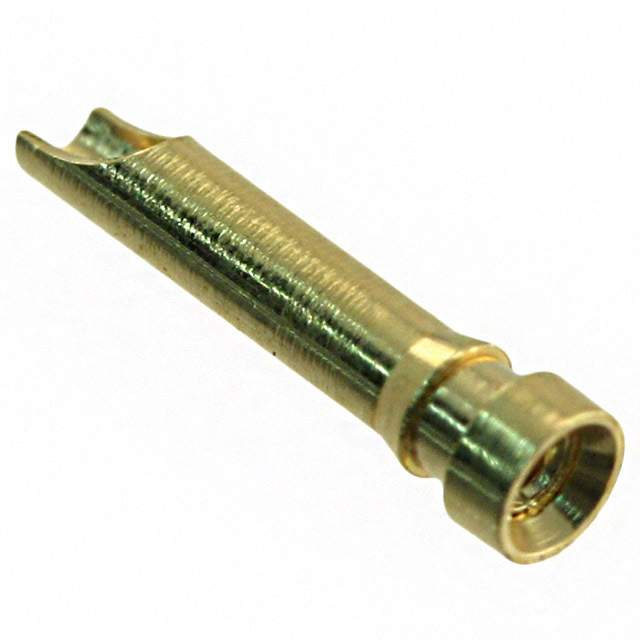

1024-0-18-15-30-27-10-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1024-0-18-15-30-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1024-0-18-15-30-27-10-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1024-0-18-15-30-27-10-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PIN RCPT .015-.025 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.165 | $0.155 | $0.133 | $0.113 | $0.109 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.098 | $0.093 | $0.078 | $0.071 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1024-0-18-15-30-27-10-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.025 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 336545 pcs | Data sheet | Pin Receptacles (in.)Pin Receptacles (metric) |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Solder Cup | Tail Diameter | - |
| Socket Depth | 0.150" (3.81mm) | Series | 1024 |
| Pin Hole Diameter | 0.043" (1.09mm) | Packaging | Bulk |
| Other Names | 1.02402E+15 1024-018153027100 1024-018153027100-ND 1024018153027100 ED1031 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.059" (1.50mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.290" (7.37mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.072" (1.83mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Solder Cup Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
