Home > Products > Connectors, Interconnects > Terminals - PC Pin Receptacles, Socket Connectors > 0566-2-15-01-21-27-10-0

0566-2-15-01-21-27-10-0

0566-2-15-01-21-27-10-0

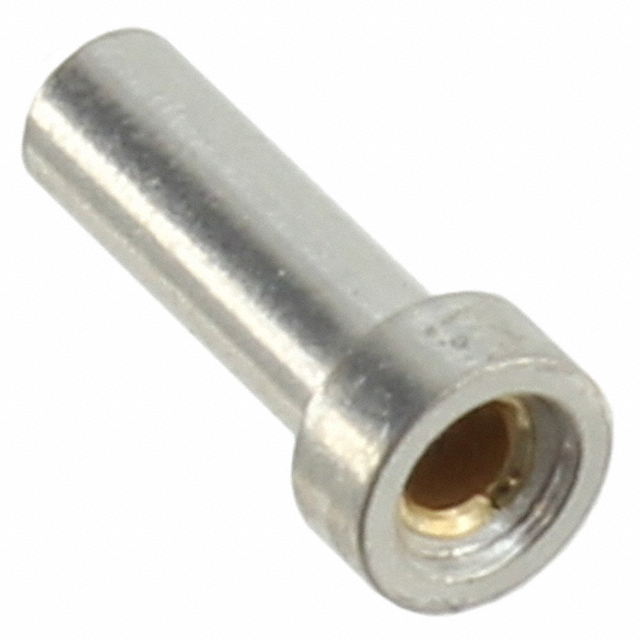

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0566-2-15-01-21-27-10-0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 0566-2-15-01-21-27-10-0
Manufacturer Mill-Max
Description CONN PIN RCPT .015-.022 SOLDER
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
In Stock 88469 pcs
Reference Price
(In US Dollars)
1000 pcs
$0.225

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.225

Product parameter

Part Number 0566-2-15-01-21-27-10-0 Manufacturer Mill-Max
Description CONN PIN RCPT .015-.022 SOLDER Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 88469 pcs Data sheet Pin Receptacles (metric)Pin Receptacles (in)
Category Connectors, Interconnects Termination Solder
Tail Type No Tail Tail Diameter -
Socket Depth 0.138" (3.51mm) Series 566
Pin Hole Diameter 0.031" (0.79mm) Packaging Bulk
Other Names 0566-215012127100
0566215012127100
566215012127100
Operating Temperature -55°C ~ 125°C
Mounting Hole Diameter 0.039" (0.99mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 5 Weeks Length - Overall 0.138" (3.51mm)
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant Insertion Force -
Flange Diameter 0.058" (1.47mm) Features -
Detailed Description Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Solder Contact Material Beryllium Copper
Contact Finish Thickness 30.0µin (0.76µm) Contact Finish Gold
Board Thickness - Accepts Square Pin Size -
Accepts Pin Diameter 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
