Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX1771EVKIT-SO

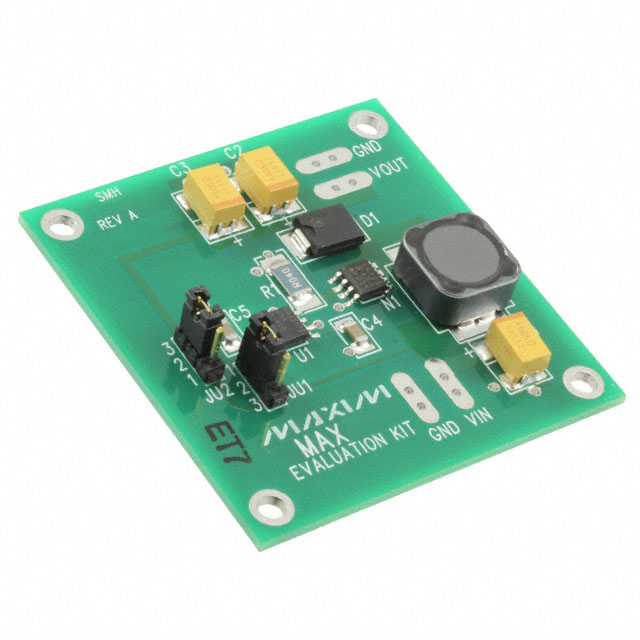

MAX1771EVKIT-SO

MAX1771EVKIT-SO

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX1771EVKIT-SO with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX1771EVKIT-SO
Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX1771
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 2825 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.264

Product parameter
Data sheet

Product parameter

Part Number	MAX1771EVKIT-SO	Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX1771	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2825 pcs	Data sheet	MAX1771 MAX1771 Eval Kit
Category	Development Boards, Kits, Programmers	Voltage - Output	12V
Voltage - Input	5V	Utilized IC / Part	MAX1771
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Up	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Frequency - Switching	300kHz	Detailed Description	MAX1771 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
Current - Output	500mA	Board Type	Fully Populated
