Home > Products > Capacitors > Aluminum Electrolytic Capacitors > PEH534YDG3470M2

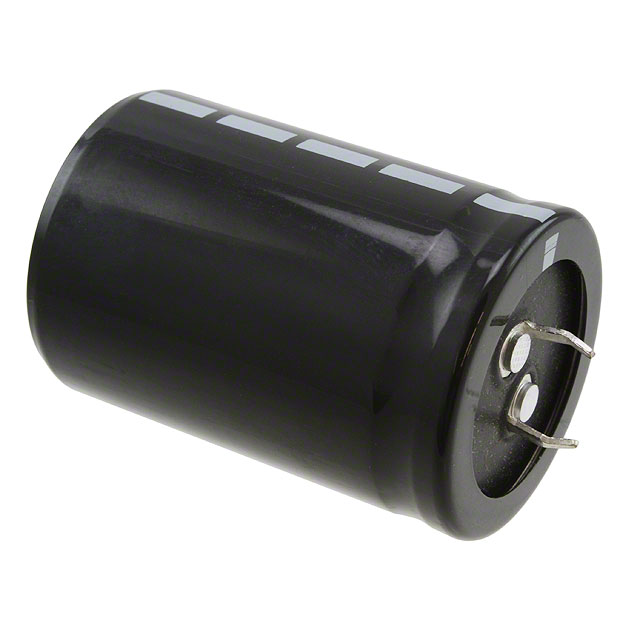

PEH534YDG3470M2

PEH534YDG3470M2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEH534YDG3470M2 with confidence from Components-World.HK, 1 Year Warranty

Dowload PEH534YDG3470M2 Details in PDF

Request a Quote

Part Number	PEH534YDG3470M2
Manufacturer	KEMET
Description	CAP ALUM 470UF 20% 450V SNAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10263 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$4.983	$4.734	$3.737	$3.314	$3.227

Product parameter
Data sheet

Product parameter

Part Number	PEH534YDG3470M2	Manufacturer	KEMET
Description	CAP ALUM 470UF 20% 450V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10263 pcs	Data sheet	PEH534 Series
Category	Capacitors	Voltage - Rated	450V
Tolerance	±20%	Surface Mount Land Size	-
Size / Dimension	1.378" Dia (35.00mm)	Series	PEH534
Ripple Current @ Low Frequency	1.9A @ 100Hz	Ratings	-
Polarization	Polar	Packaging	Bulk
Package / Case	Radial, Can - Snap-In	Other Names	399-5684 A561EH471M450A
Operating Temperature	-40°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lifetime @ Temp.	2000 Hrs @ 105°C	Lead Spacing	0.394" (10.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	1.969" (50.00mm)
ESR (Equivalent Series Resistance)	180 mOhm @ 100Hz	Detailed Description	470µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 180 mOhm @ 100Hz 2000 Hrs @ 105°C
Capacitance	470µF	Applications	General Purpose
