ESH226M500AL4AA

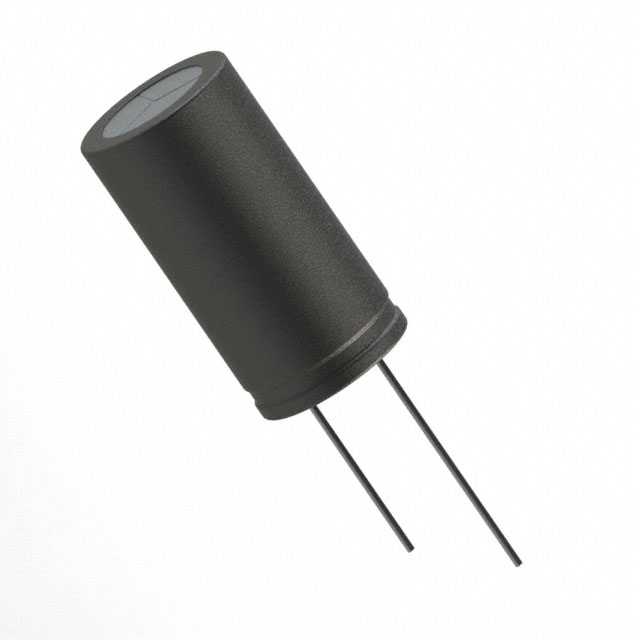

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESH226M500AL4AA with confidence from Components-World.HK, 1 Year Warranty
Dowload ESH226M500AL4AA Details in PDFSee Product Specifications for product details.
Buy ESH226M500AL4AA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESH226M500AL4AA |
|---|---|
| Manufacturer | KEMET |
| Description | CAP ALUM 22UF 20% 500V THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.526 | $0.415 | $0.311 | $0.235 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.207 | $0.194 | $0.187 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESH226M500AL4AA | Manufacturer | KEMET |
|---|---|---|---|
| Description | CAP ALUM 22UF 20% 500V THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110029 pcs | Data sheet | ESH Series |
| Category | Capacitors | Voltage - Rated | 500V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.512" Dia (13.00mm) | Series | ESH |
| Ripple Current @ Low Frequency | 115mA @ 120Hz | Ripple Current @ High Frequency | 132.25mA @ 100kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can |
| Other Names | 399-15676 SH226M500AL4AAKPLP |
Operating Temperature | -25°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | 0.197" (5.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.063" (27.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 22µF 500V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C | Capacitance | 22µF |
| Applications | General Purpose |
