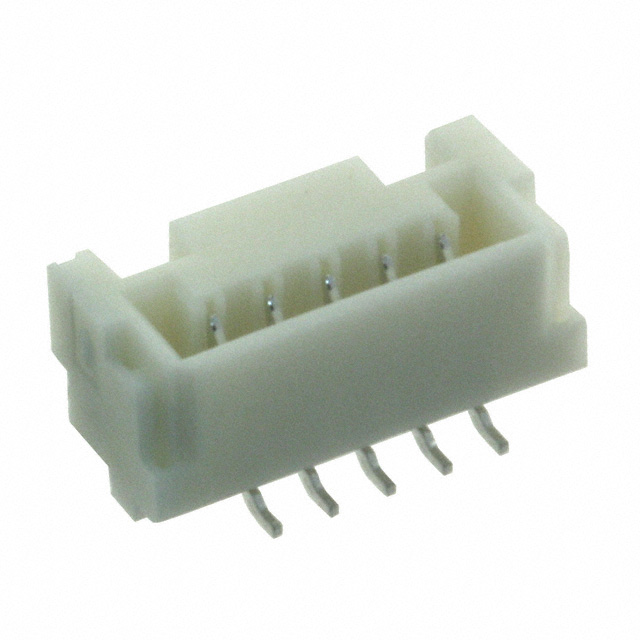

BM05B-GVHS-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM05B-GVHS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM05B-GVHS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | BM05B-GVHS-TB(LF)(SN) |
---|---|
Manufacturer | JST |
Description | CONN HEADER GVH 5POS SMD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 2500 pcs | ||||
---|---|---|---|---|---|
$0.075 |
- Product parameter
- Data sheet
Product parameter
Part Number | BM05B-GVHS-TB(LF)(SN) | Manufacturer | JST |
---|---|---|---|
Description | CONN HEADER GVH 5POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 267362 pcs | Data sheet | GVH Connector |
Category | Connectors, Interconnects | Voltage Rating | 50V |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | GVH |
Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
Packaging | Tape & Reel (TR) | Overall Contact Length | - |
Other Names | 455-2627-2 BM05BGVHSTBLFSN |
Operating Temperature | -25°C ~ 85°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 5 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 8.8mm | Manufacturer Standard Lead Time | 24 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
Insulation Height | 0.159" (4.05mm) | Insulation Color | Natural |
Ingress Protection | - | Features | Solder Retention |
Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 5 position 0.049" (1.25mm) |
Current Rating | 1A | Contact Type | Outer Shroud Contact |
Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
Contact Length - Post | - | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | - |
