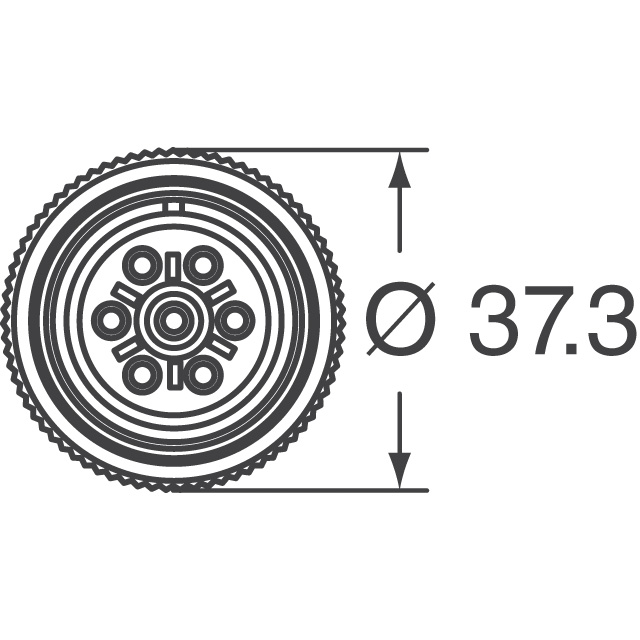

JL04V-8A20-15SE-EB-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JL04V-8A20-15SE-EB-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JL04V-8A20-15SE-EB-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JL04V-8A20-15SE-EB-R |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG FMALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JL04V-8A20-15SE-EB-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG FMALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4369 pcs | Data sheet | JL04V-8A20-15SE(x)-EB-R DrawingJL04V Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 20-15 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL04V | Packaging | Bulk |
| Other Names | 670-2112 JL04V8A2015SEEBR |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 7 (6 + PE) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut, Ground Lug |
| Fastening Type | Threaded | Detailed Description | 7 (6 + PE) Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 23A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | Aluminum Alloy, Zinc |
| Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
