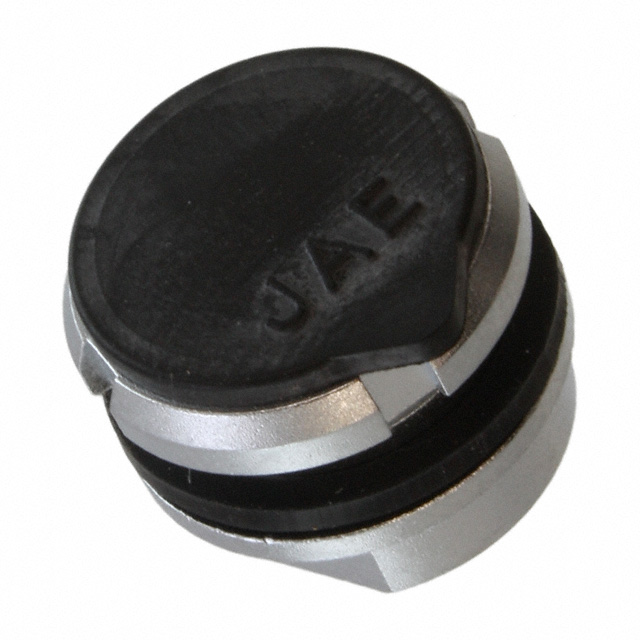

JB5CS08FN00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JB5CS08FN00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JB5CS08FN00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JB5CS08FN00 |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT FMALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JB5CS08FN00 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT FMALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5252 pcs | Data sheet | Circular ConnectorsJB5CS08FNy0 DrawingJB5 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | S |
| Shell Material | Copper Alloy | Shell Finish | Chromium |
| Series | JB5 | Packaging | Tray |
| Other Names | 670-1037 | Orientation | Keyed |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP68 - Dust Tight, Waterproof | Features | Dust Cap |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 2A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Medical, Telecommunications, Test & Measurement |
